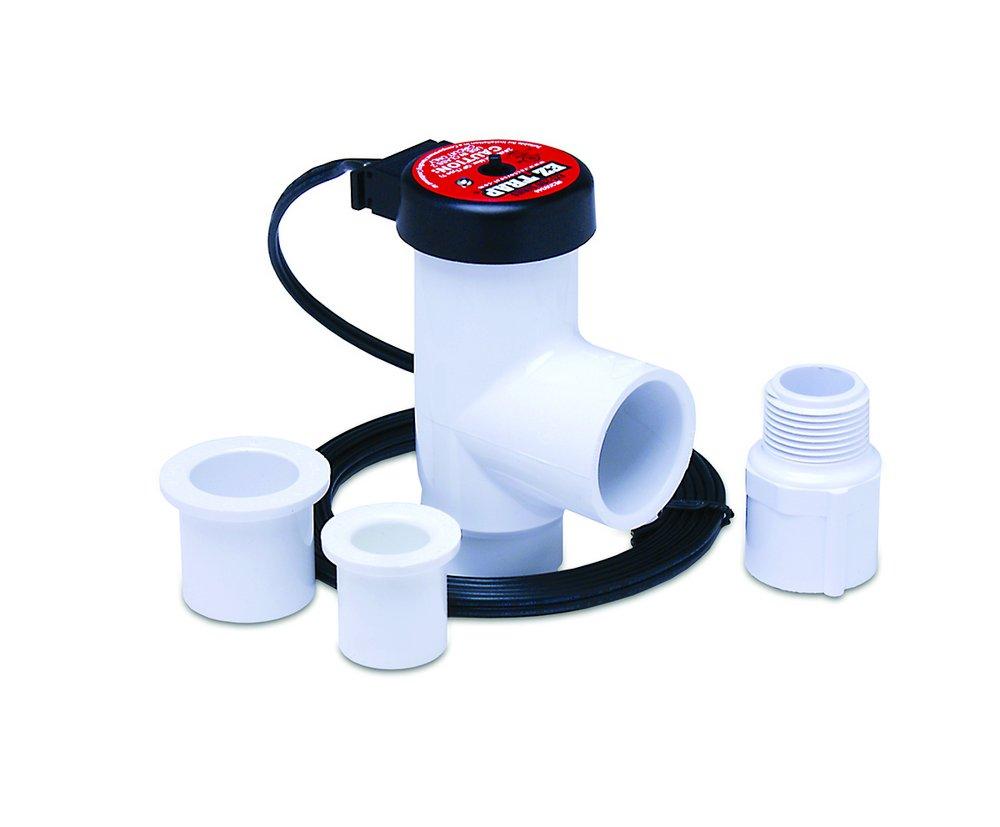

RectorSeal 83225 EZ Trap 24V Condensate Switch 9 in.

Product Description

The RectorSeal EZ Trap 24V Condensate Switch, model number 83225, serves as a reliable overflow switch for HVAC systems. This switch can be used with condensate traps or independently and is designed for easy installation. It can be mounted either vertically or horizontally, accommodating both threaded and plugged configurations.

• Compatible with 24 VAC systems
• Supports in-line or plug installation
• Includes necessary fittings for installation

Product Highlights

This condensate switch helps ensure proper drainage in HVAC systems, preventing overflow.

Product Information

Standard Information

• Brand: RectorSeal
• MPN: 83225

Technical Specifications

• Voltage Rating: 24 VAC
• Amperage Rating: 4 A
• Inlet Size: 3/4 inch or 1 inch
• Outlet Size: 3/4 inch
• Weight: 0.5 lbs
• Material: Plastic
• Length: 9 inches
• Width: 2.5 inches
• Height: 13 inches
• Includes: 1 x 3/4 x 1 inch tee, 3/4 inch male adapter, 3/4 inch plug, 1 x 3/4 inch bushing, float switch assembly, and 48 inch cable
