Rectorseal 70265 Big Foot Multi Frame XL B9731

Product Description

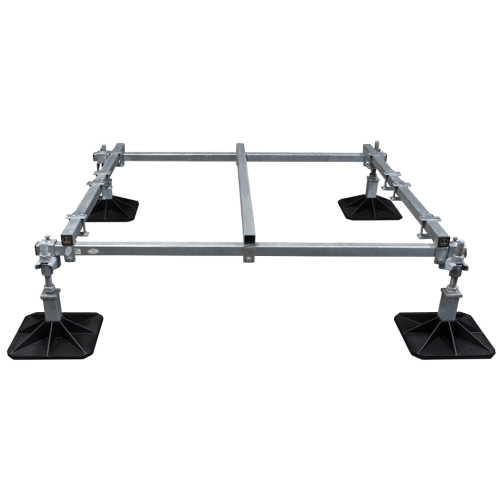

The Rectorseal 70265 Big Foot Multi Frame XL is a quick to assemble and versatile VRF/VRV mount. This modular system allows configuration of the frame layout and can be extended from any side as needed with extension kits. The Multi Frame XL is wider than the original Multi Frame and ideal for rooftop support of equipment and systems.

• Adjustable leg assemblies, easy & quick to assemble
• Galvanized steel frame with 12" feet
• Ideal rooftop support of equipment and systems

Product Highlights

Designed for VRF/VRV mounting, the Multi Frame XL is extendable from any side with extension kits and provides weather resistance.

Product Information

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: 70265

Technical Specifications

• SKU: 70265
• UM: Each(es)
• Case Quantity: 1
• Categories: VRF / VRV Mount, Outdoor Mounting
• Brand: Big Foot
• Recommended Use: Compressors, Condensers, VRV/VRFs, Small AHUs, Unitary fans, Rooftops
• Application: Designed for VRF/VRV mounting; Extendable from any side with extension kits
• Fin/Blade Spacing: .000
• Fin Degree: 0
• Screw Holes: 0
• Case Weight (lbs): 70.00
• Case Height (inch): 6.00
• Case Length (inch): 14.00
• Case Width (inch): 62.00
• Part Number: 70265
• Certificate: NSF
• Manufacturer Name: RECTORSEAL CORP.
• Alt Part #: B9731
