Rectorseal 66733 NoKink flexible minisplit refrigerant line connector 3/8 in x 36 in

Product Description

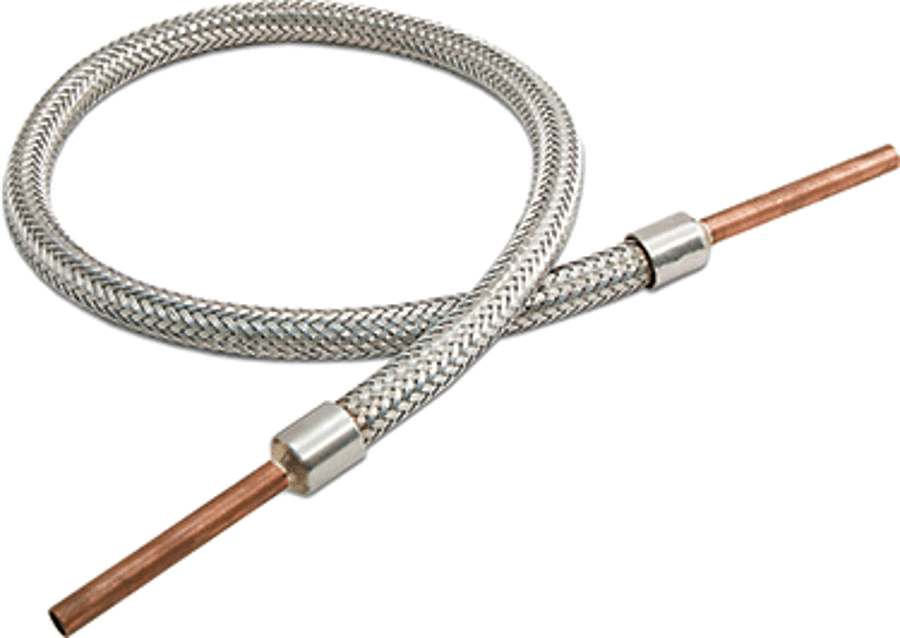

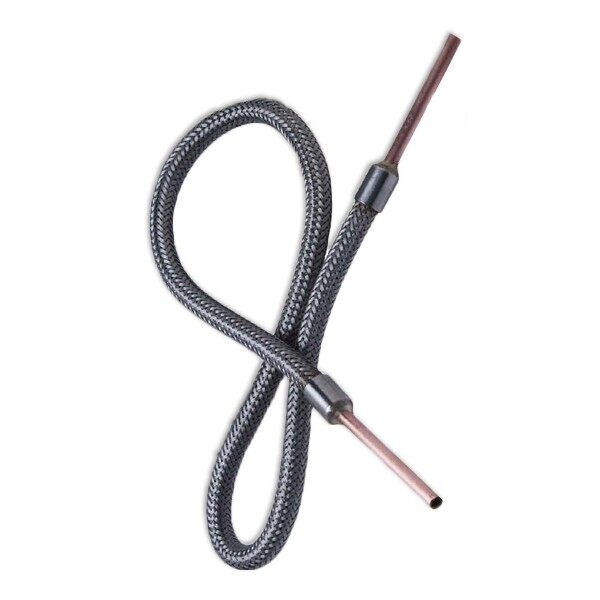

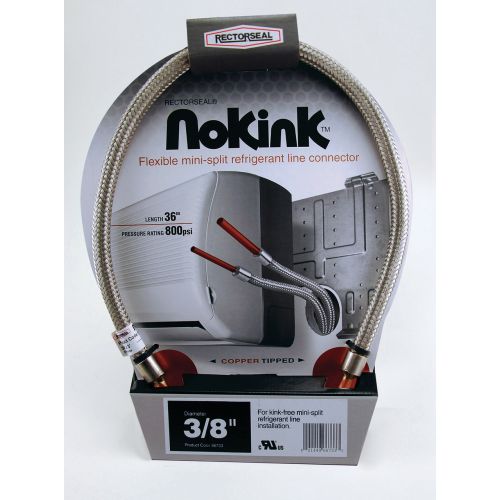

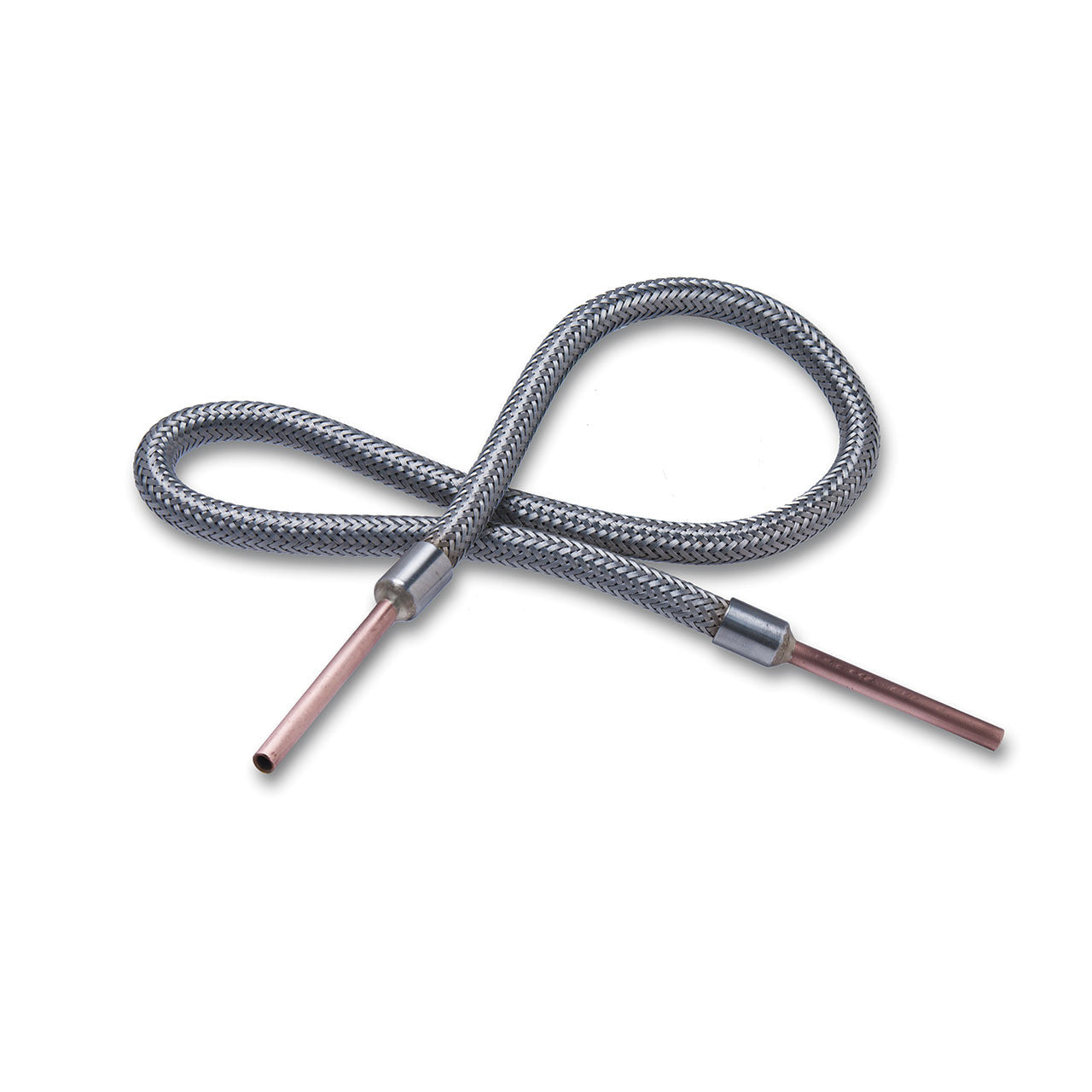

RectorSeal 66733 NoKink flexible refrigerant line connector provides a kink-free connection between a wall-mounted mini-split evaporator and in-wall refrigerant lines. The 3/8 inch by 36 inch flex hose uses corrugated 300 series stainless steel internal piping with woven stainless steel jacketing and includes 3 inch copper stubs for easy flaring. The connector is rated to 800 psi and is UL listed for common refrigerants including R410A and R22.

• 3/8 in diameter x 36 in length with 3 in copper stubs for quick connection and easy flaring
• Corrugated 300 series stainless steel internal piping with woven stainless steel jacketing
• Operating/working pressure up to 800 psi; UL listed for R410A and R22

Product Highlights

Flexible NoKink design prevents kinking; stainless steel construction with woven jacketing; 3 inch copper stubs and 800 psi rating; UL listed for R410A and R22.

Product Information

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: 66733
• Country of Origin: United States

Technical Specifications

• Brand: RectorSeal
• MPN: 66733
• Product Name: NoKink flexible refrigerant line connector
• Size: 3/8 in diameter x 36 in length
• Length: 36 inches (3 ft)
• Connection Size: 3/8 in
• Copper Stub Length: 3 in
• Internal Piping Material: Corrugated 300 series stainless steel
• Outer Jacketing: Woven stainless steel jacketing
• Pressure Rating: 800 psi
• UL Listing: UL listed (Canada and US); UL listed for R410A and R22
• Applicable Standard: UL (Canada and US)
• Application: Mini-split evaporator and in-wall refrigerant line connections; HVAC and air conditioning units
• Weight: 2 Pounds
• UPC: 021449667333
• Connector Type: Flexible hose / line connector
• Connection Options: Allows brazing or flaring
• Country of Origin: United States
• Material: Stainless steel internal piping with stainless steel jacketing and copper stubs
