Rectorseal 66731 NoKink Flexible Minisplit Refrigerant Line Connector 1/4 x 36 in

Product Description

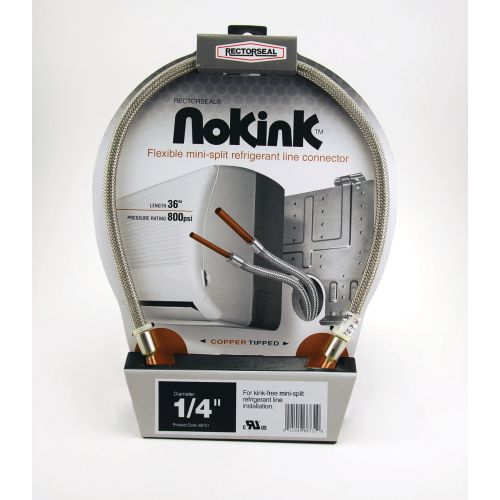

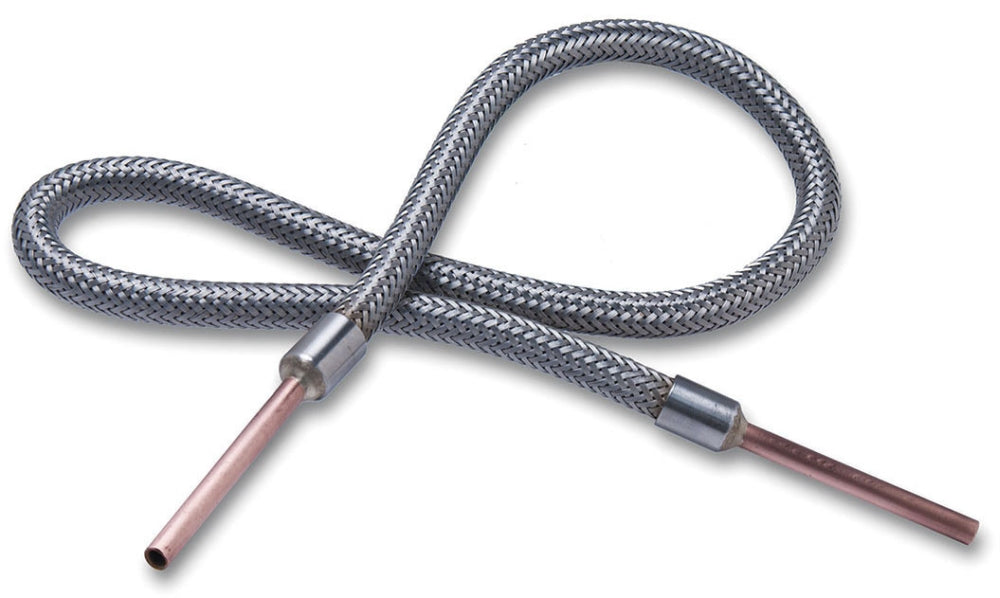

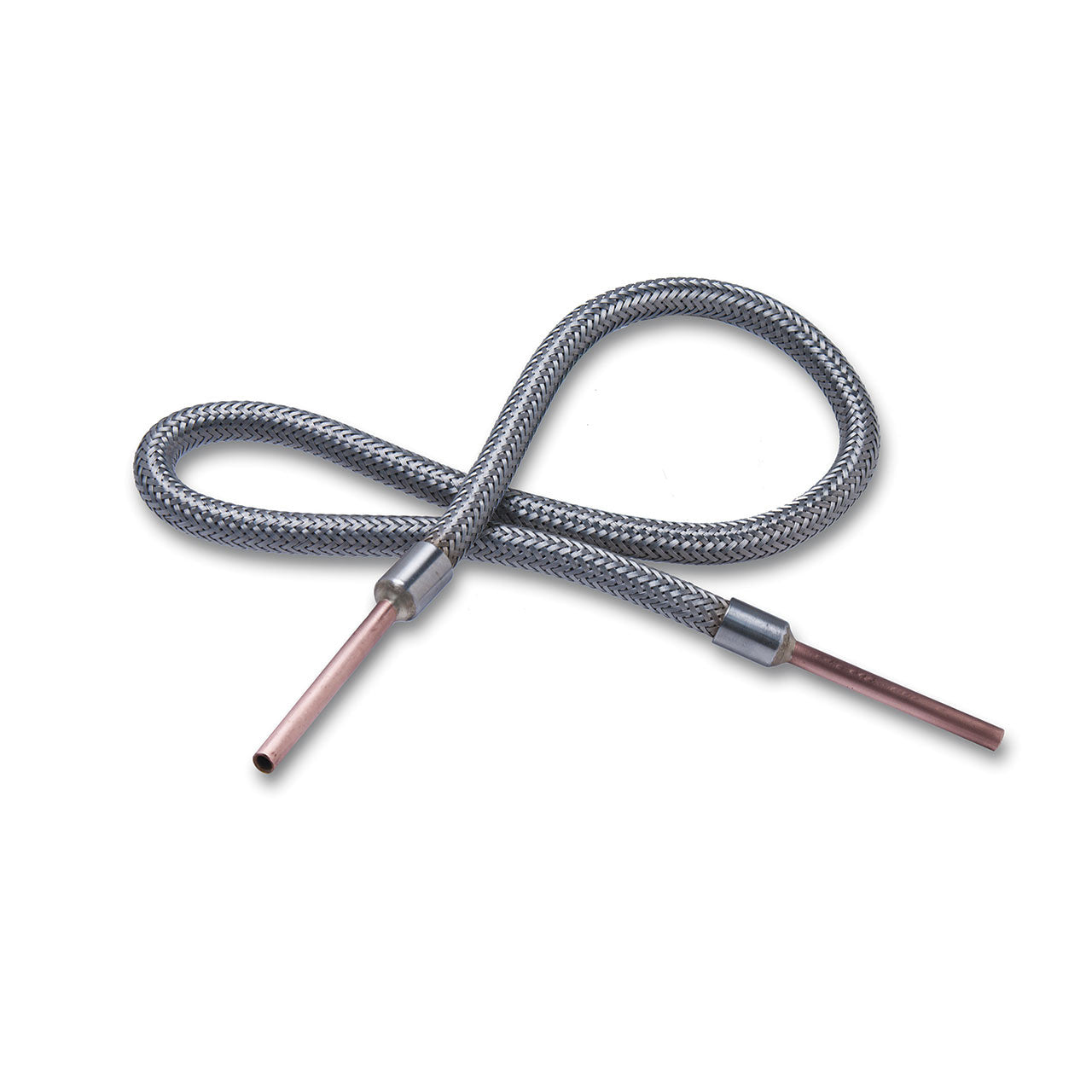

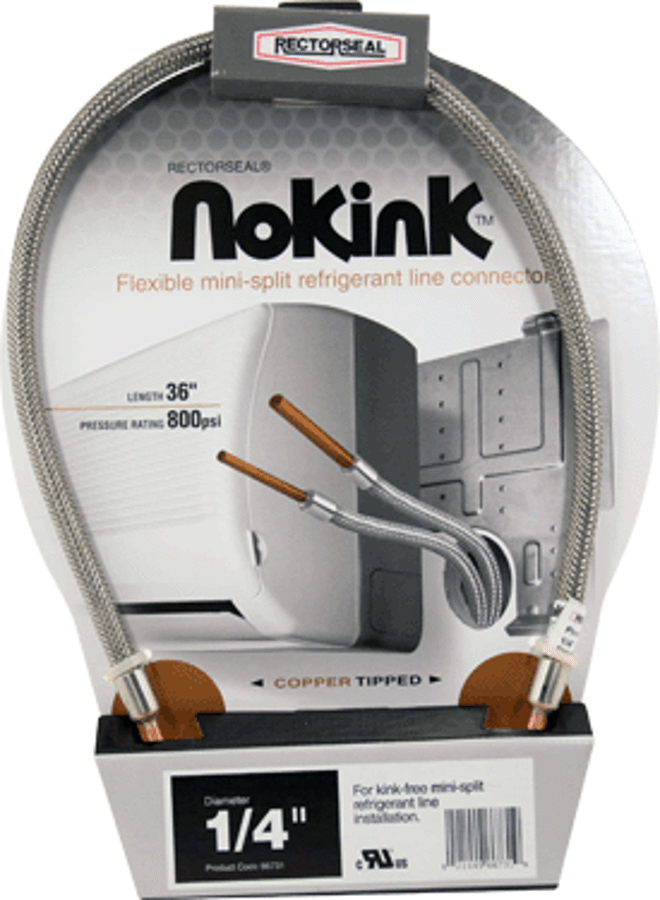

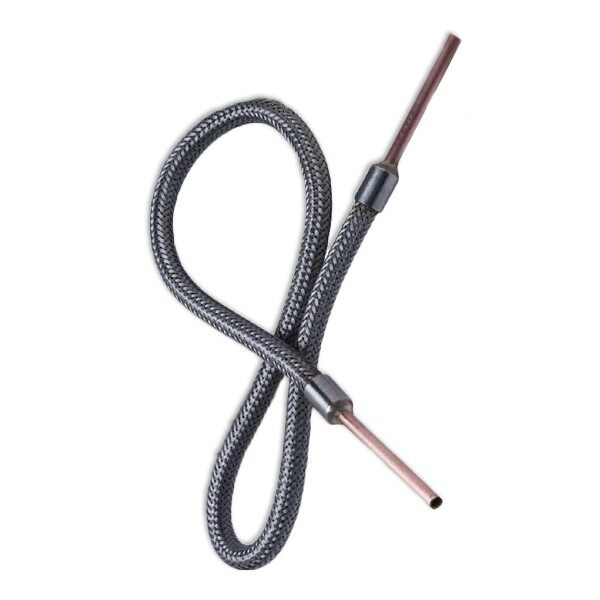

The RectorSeal 66731 NoKink flexible refrigerant line connector is a 1/4 in by 36 in stainless steel flex hose designed for mini-split evaporators. It uses corrugated 300-series stainless steel internal piping with woven stainless steel jacketing and includes 3 in copper stubs for easy flaring. The connector is UL listed and rated to 800 psi, providing a flexible, kink-resistant connection for in-wall refrigerant lines to evaporator or condenser units.

• NoKink corrugated 300-series stainless steel hose with woven stainless jacketing to prevent kinking
• Includes 3 in copper stubs for quick connection and easy flaring; allows brazing or flaring
• Rated to 800 psi and UL listed (Canada and US); nominal size 1/4 in, length 36 in

Product Highlights

Flexible 1/4 in x 36 in stainless steel mini-split refrigerant connector with 3 in copper stubs and 800 psi rating

Product Information

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: 66731

Technical Specifications

• MPN: 66731
• Brand: RectorSeal
• Model: NoKink
• Type: Flexible refrigerant line connector (flex hose)
• Nominal Size: 1/4 in
• Length: 36 in
• Material: 300 series stainless steel (corrugated internal piping)
• Jacketing: Woven stainless steel jacketing
• Copper Stub Length: 3 in
• Connection Size (Supply): 1/4 in
• Connection Size (Return): 1/4 in
• Pressure Rating: 800 psi
• UL Approval / Applicable Standard: UL listed (Canada and US); UL listed for R410A
• Allows Brazing or Flaring: Yes
• Product Category: Mini split accessories / HVAC
• Typical Application: Connects in-wall refrigerant line to mini-split evaporator or condenser units
• UPC: 021449667319
