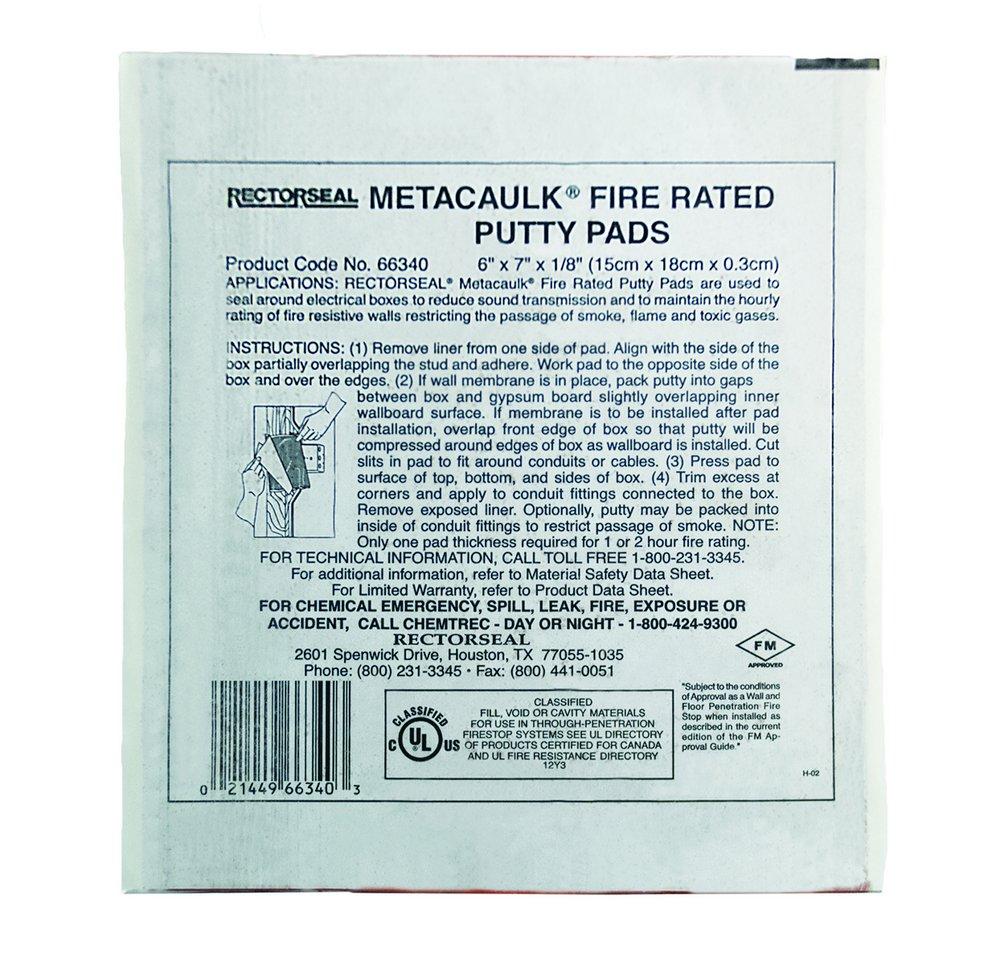

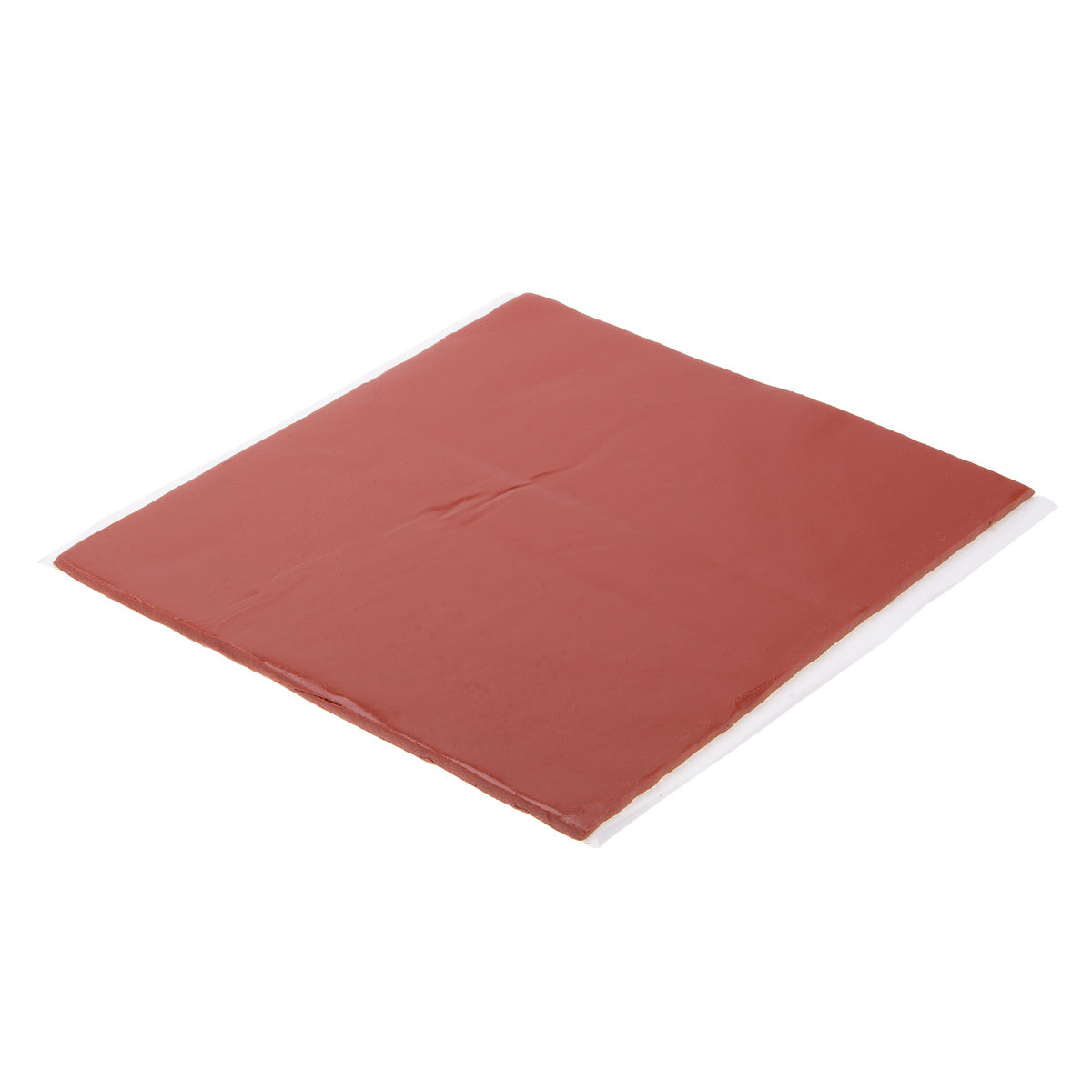

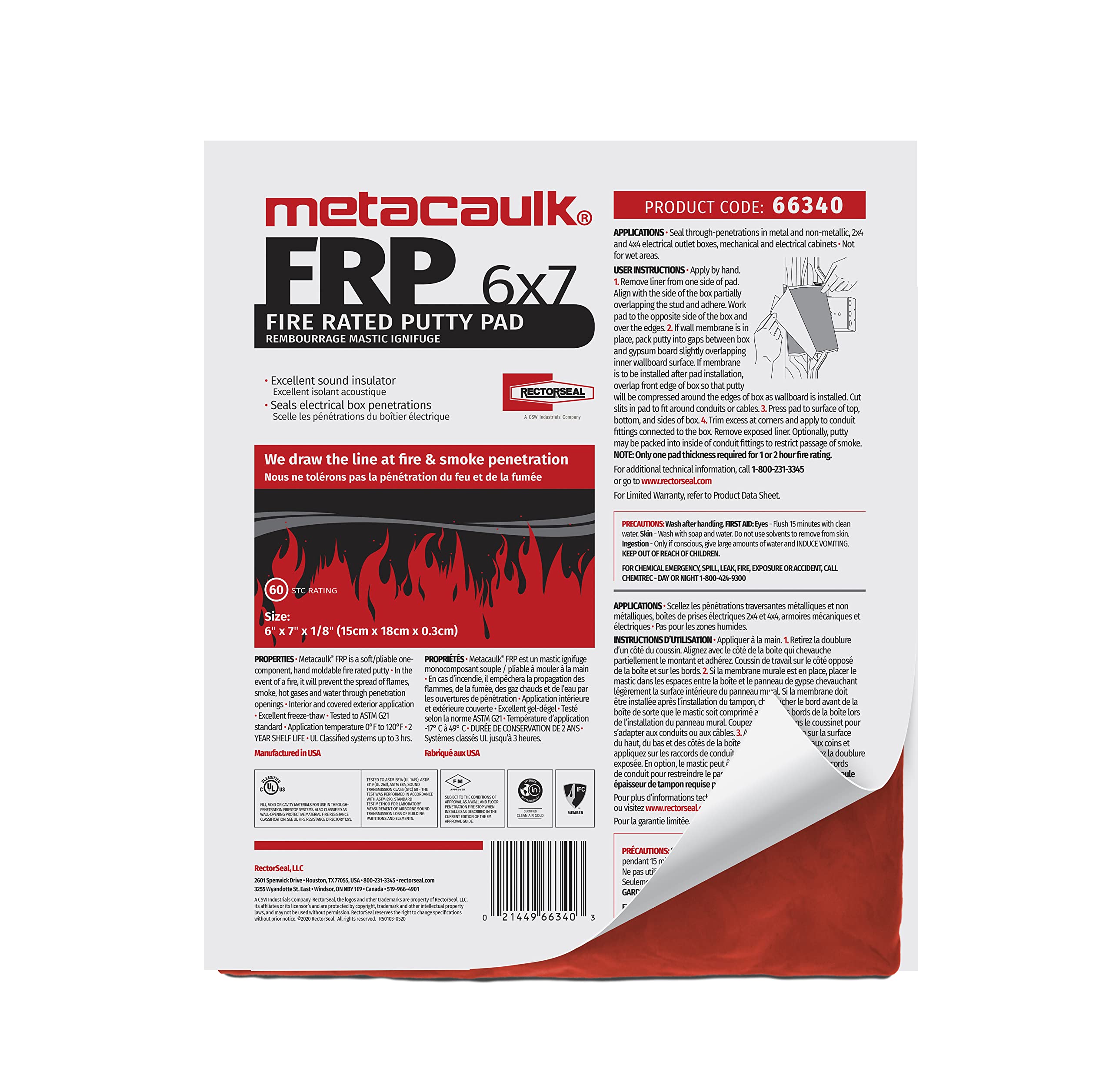

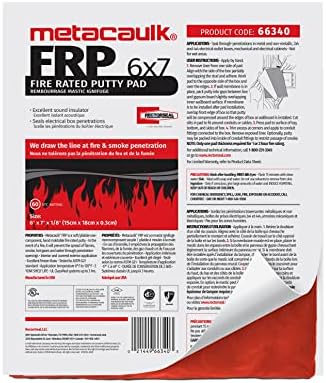

Rectorseal 66340 Metacaulk Fire Rated Putty Pad 6 inchesx 7 inches

Product Description

The Rectorseal 66340 Metacaulk Putty is a moldable, non-curing, one-component fire-rated material designed for through-penetration firestop systems. It intumesces when heated, forming an insulating char. In the event of a fire, it prevents the spread of flames, smoke, gas, and water through penetration openings. It is applied by hand, and no tools or mixing is required.

• Moldable and non-curing
• Intumescent properties; expands when exposed to fire
• Prevents the spread of flames, smoke, gas, and water

Product Highlights

This fire-rated putty pad is easy to install and adheres to common building surfaces, making it ideal for maintaining fire ratings in walls with electrical outlet boxes.

Product Information

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: 66340
• Country of Origin: US

Technical Specifications

• Type: Fire Seal
• Width: 7 Inches
• Length: 6 Inches
• Standard: UL 1479, ASTM E 814, CAN4-S115-M
• Composition: Flame Retardant
• Fire Rating: Up to 3 Hours
• Country of Origin: US
• Temperature Rating: 0°F to 120°F
• Brand: Rectorseal
• MPN: 66340
• Applicable Materials: Conduit, Gypsum, EMT, Metal/Non-Metallic, Steel,
• Odor Scent: Slight
• Specific Gravity: 1.48
• Standards/Approvals: ASTM E814|UL 1479 and ULC/CAN4-S115-M|cULus Listed|FM Approved|US Green Building Council|STC rating 60
• VOC Content: <10 g/L
• Manufacturer: RECTORSEAL
• Recommended Use: Metal or non-metallic Outlet Boxes
• Applied: Applied by hand
• Asbestos Fillers: No asbestos fillers
• Special Feature: Flexible
• Fill Material: Common building material
• Model Name: Metacaulk Putty Pads
• Unit Count: 1.0 Count
• Model Number: 66340
• Included Components: Putty Pad
• Item Type Name: Putty Pad
• Recommended Uses For Product: Metal or non-metallic Outlet Boxes
• Specific Uses For Product: Prevents spread of flames/smoke/gas/water through penetrations.
• Material Type: Use Metacaulk Putty Pads to protect metal electrical cabinets, outlet boxes and mechanical cabinets, to maintain hourly rating of fire-rated walls with electrical outlet boxes & to reduce sound transmission, Do not expose to water.
• Material Features: Metal or non-metallic Outlet Boxes, Flexible and Moldable
• Material Type Free: Free- Forming
• Item Firmness Description: Non- Curing
• Shape: Square
• Pattern: Solid
• ECCN: EAR99
• UNSPSC: 46191507
