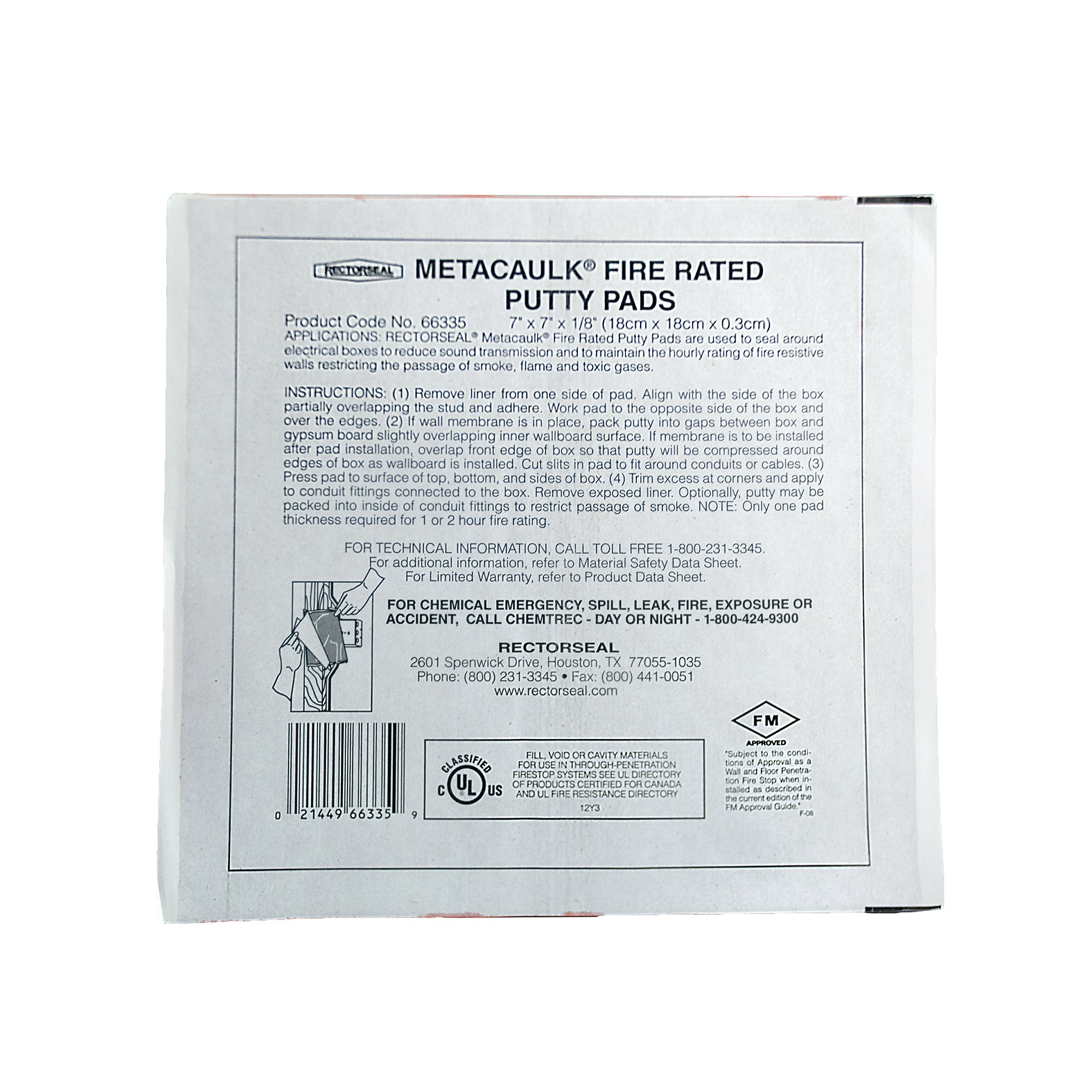

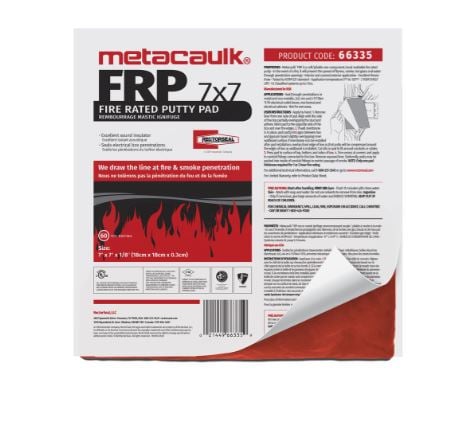

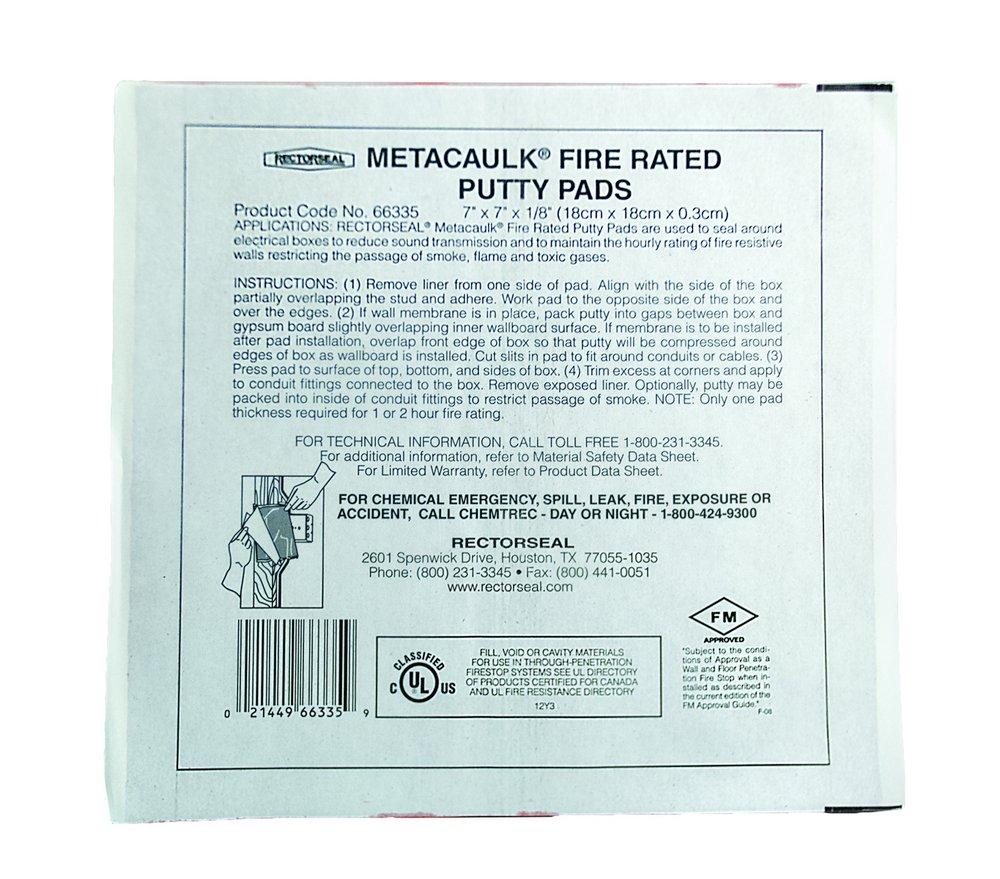

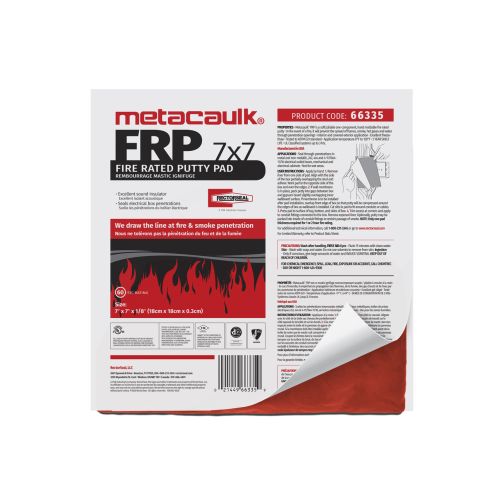

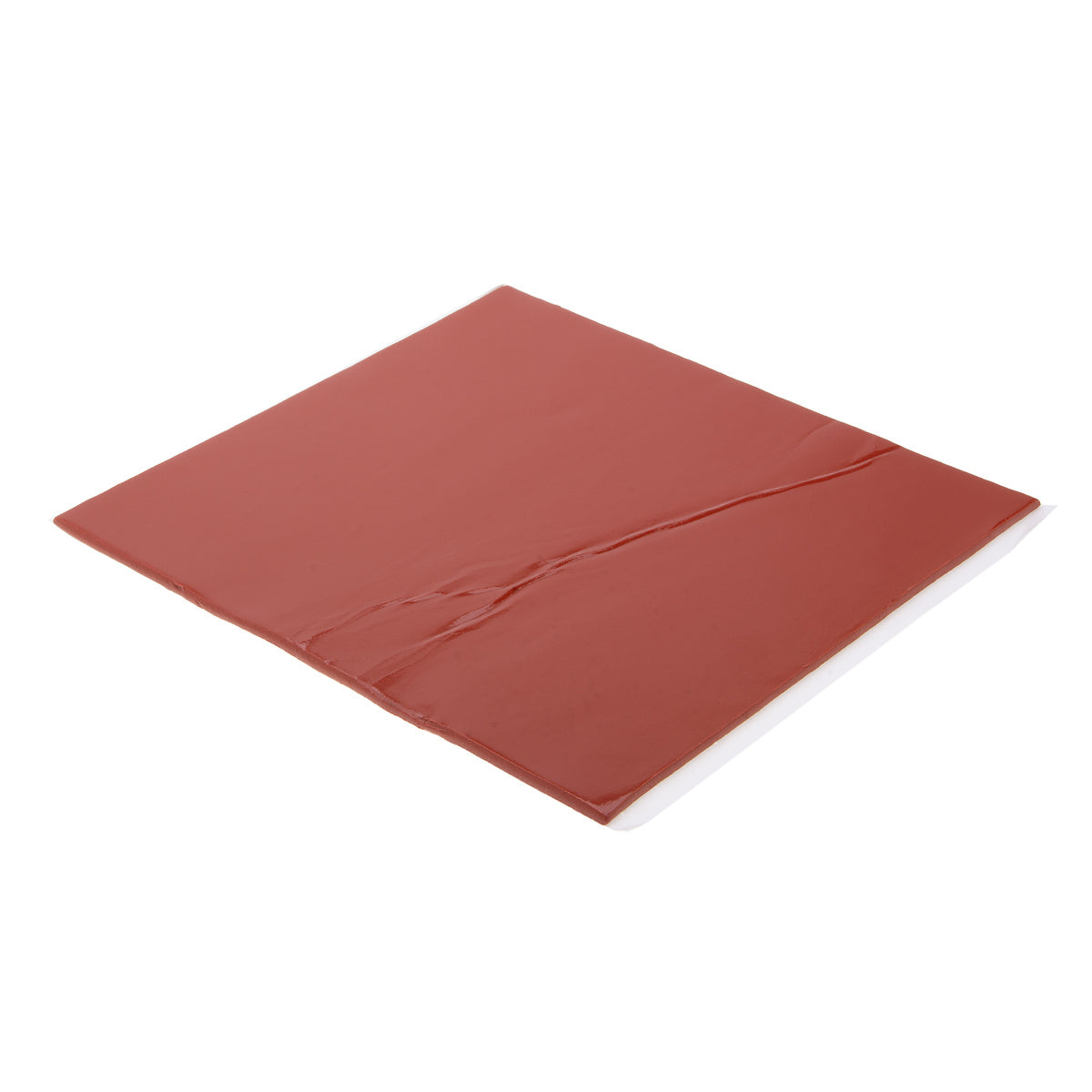

The RECTORSEAL 66335 is a 7X7 Putty Pad, available as 20 per case. This fire stop putty pad is applied by hand and easy to install, requiring no mixing or special skills. It adheres to common building surfaces and is rated for up to 3 hours in accordance with ASTM E 814, UL 1479, and ULC/CAN4-S115-M test standards.
Applied by hand and easy to install
Mixing never required
Adheres to all common building surfaces
Rated for up to 3 hrs in accordance with ASTM E 814, UL 1479 and ULC/CAN4-S115-M test standards
Product Highlights
Fire-rated putty pad for firestop systems. Easy to install and adheres to common building surfaces. Rated up to 3 hours.
Product Information
Standard Information
Brand: RECTORSEAL
Manufacturer Part Number: 66335
Technical Specifications
Type
FIRE STOP
UNSPSC Code
46191507
Brand
Rectorseal
Overall Dimensions (L x W x H)
7 x 0.125 x 7
UPC
02144966335
Manufacturer Name
RectorSeal
Manufacturer Part Number
66335
GTIN
00021449663359
UNSPSC
31201500
Energy Star Flag
No
Width
7
Packaging
20/Pack
Standards
cULus Certified, FM Approved, IFC Rated
Thickness
0.125
Temperature Rating
0 to 120 deg F
Sub Brand
Metacaulk��
Length
7
Item Name
Putty Sticks And Pad
Brand Name
RectorSeal
Tape Color
Red
Fire Rating
Up to 3 hr
Sound Transmission Class (STC) Rating
60
Pad Thickness
1/8 inch (needed for a 1-2 hour fire rating)
Material
Moldable non-curing fire-rated material
Applicable Materials
Conduit, Gypsum, EMT, Metal/Non-Metallic, Steel
Application
For to seal around cable, electrical conduit and metal pipe through fire rated walls, floors and blank openings to prevent passage of smoke, flame and toxic gases and do not expose to water
Odor Scent
Slight
Specific Gravity
1.48
Standards/Approvals
ASTM E814|UL 1479 and ULC/CAN4-S115-M|cULus Listed|FM Approved|US Green Building Council|STC rating 60
VOC Content
<10 g/L
SKU
66335
Recommended Use
Metal or non-metallic Outlet Boxes
Applied
Applied by hand
Fillers
No asbestos fillers
Adheres
Adheres to all common building surfaces for interior use
