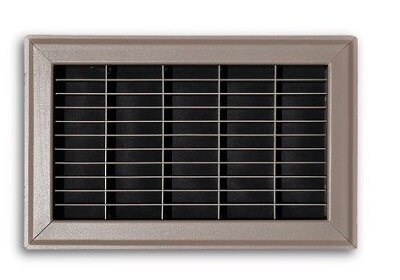

Rectorseal 3514X20 Floor Return Air Grille 14x20 Brown

Product Description

The RECTORSEAL 3514X20 is a fixed-face floor return air grille designed for residential HVAC return duct systems. Stamped from steel and finished in brown, it fits larger floor return openings where increased airflow capacity is required. The fixed-blade face maintains consistent airflow direction into the return duct without the complexity of adjustable louvers. At 14 inches by 20 inches, this grille suits extended rectangular floor return applications in standard residential construction. HVAC technicians and installers specify this style of grille for its straightforward drop-in fit and durable factory finish.

This grille is intended for floor-mounted return air applications in residential forced-air HVAC systems. The 14-inch by 20-inch face size accommodates larger return openings common in hallways, living areas, and utility spaces where a single return grille serves a significant portion of a home's return air load. The brown finish blends with hardwood, laminate, and tile flooring commonly found in residential installations.

Key Features

• Stamped steel construction for rigidity and long service life
• Fixed-face design delivers consistent, unobstructed return airflow
• 14 inches by 20 inches nominal face size suits larger floor return openings
• Brown powder-coat or baked finish for architectural consistency with wood and tile flooring
• Floor-mount orientation rated for foot traffic and routine cleaning

Compatibility

Designed as an OEM-style replacement or new-installation floor return air grille for residential forced-air HVAC systems with a 14-inch by 20-inch floor return opening.

Installation Notes

Installation is performed by HVAC technicians or qualified installers. Shut down the air handler or furnace before removing an existing grille or opening the return duct cavity. Verify the rough opening dimensions match the grille face size before fastening. Secure the grille to the floor frame using appropriate fasteners to prevent movement under foot traffic.

Technical Specifications

• Face Width: 14 inches
• Face Length: 20 inches
• Material: Stamped Steel
• Finish Color: Brown
• Blade Type: Fixed Face
• Mounting Orientation: Floor
• Application: Return Air

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: 3514X20
