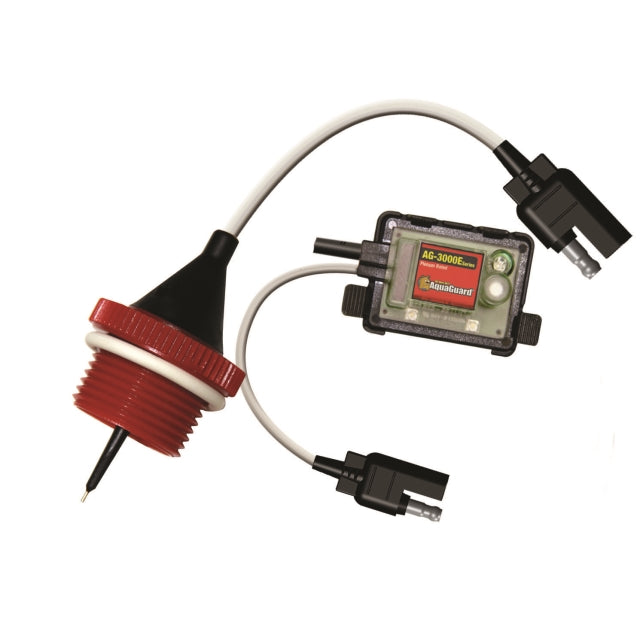

Rectorseal 3150E Aquaguard Sensor W/Time Delay 0-24V AC 5A 4.75 inch L x 2.75 inch W x 9 inch H

Product Description

The RECTORSEAL 3150E Aquaguard Sensor with Time Delay is designed for reliable condensate detection in primary and secondary drain pans. Operating from 0 to 24 Volt AC with a 5 Amp current rating, this sensor helps prevent water damage by monitoring water levels. Its compact design allows for horizontal or vertical mounting, making it suitable for various HVAC applications. It includes a time delay feature to prevent nuisance trips.

• Water detection LED light for clear status indication.
• Bonus secondary sensor for enhanced reliability.
• Compact waterproof design for durable performance.

Product Highlights

This drain pan sensor provides effective water detection with a time delay, ensuring protection against overflow in HVAC condensate systems.

Product Information

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: 3150E

Technical Specifications

• Mounting Type: Horizontal/Vertical
• Color: Clear/Black
• Application: Primary/Secondary Drain Pan
• Certifications: UL (Canada and US)
• Input Voltage: 0 to 24 Volt AC
• Output Current: 5 Amp
• Operating Temperature: 20 to 120 Deg F
• Features Included: Water Detection LED, Time Delay
