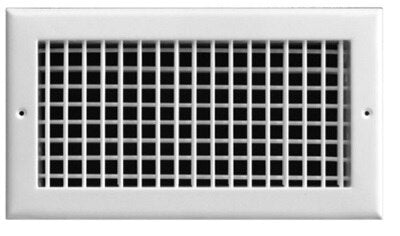

Rectorseal 220VO14X6 Supply Register 14x6 Inches White

Product Description

The RECTORSEAL 220VO14X6 is a stamped steel double deflection supply register with an integrated opposed blade damper, designed for ceiling and sidewall installation in forced-air HVAC systems. The register features independently adjustable horizontal and vertical blade sets, providing two-plane airflow direction control for precise air distribution. The opposed blade damper allows field-adjustable volume balancing directly at the grille, giving the installer both directional and capacity control in a single unit. The white powder-coat finish provides corrosion resistance for long-term serviceability. Licensed HVAC technicians and sheet metal contractors are the typical installers for this type of register.

The 220VO14X6 is suited for residential and light commercial HVAC applications where precise airflow pattern management and integrated balancing are required at the supply outlet. The 14-inch by 6-inch face dimension is sized to fit standard rectangular duct openings commonly found in both new construction and retrofit installations. It is appropriate for ceiling diffuser positions as well as sidewall supply locations where two-plane deflection is needed to direct conditioned air along the ceiling plane or into the occupied zone.

Key Features

• Double deflection design with independently adjustable horizontal and vertical blades for two-plane airflow control
• Integrated opposed blade damper for field-adjustable airflow volume balancing at the grille
• Stamped steel construction for rigidity and durability in long-term service
• White powder-coat finish for corrosion resistance and clean appearance
• 14-inch by 6-inch face fits standard rectangular duct openings in ceiling and sidewall applications

Compatibility

Designed as an OEM-style replacement or new-installation supply register for standard rectangular duct openings in residential and light commercial forced-air HVAC systems requiring double deflection and integrated opposed blade damper control.

Installation Notes

Installation is typically performed by a licensed HVAC technician or sheet metal contractor. Shut down the air handler and confirm the system is depressurized before removing an existing register or fitting the new unit. Blade adjustment and damper setting should be completed after system startup during final air balancing. Follow local mechanical codes and ACCA Manual D guidelines for register placement and throw requirements.

Technical Specifications

• Face Dimension: 14 inches x 6 inches
• Construction: Stamped steel
• Finish: White powder coat
• Blade Configuration: Double deflection, adjustable horizontal and vertical blades
• Damper Type: Opposed blade, field-adjustable
• Mounting Location: Ceiling or sidewall

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: 220VO14X6
