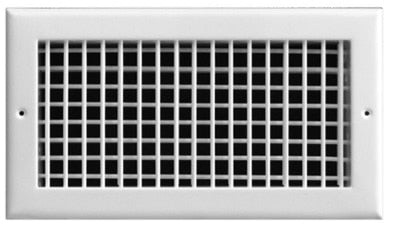

Rectorseal 220VO10X4 Double Deflection Supply Grille

Product Description

The RECTORSEAL 220VO10X4 is a stamped steel double deflection supply grille designed to provide two-plane airflow direction control in forced-air HVAC systems. It features independently adjustable horizontal and vertical blades that allow the technician to direct conditioned air precisely at the face of the grille without redistributing system airflow volume. The grille ships without an integrated damper, keeping the airflow path unrestricted. The white powder-coat finish resists corrosion and holds up in long-term service. This grille fits a standard 10 inch by 4 inch rectangular duct opening and installs in ceiling or sidewall applications.

This supply grille is suited for residential and light commercial HVAC installations where adjustable air pattern control is needed but airflow balancing hardware is not required at the register location. Typical applications include single-zone and multi-zone ducted systems in living spaces, offices, and corridors where the installer needs directional flexibility without adding a volume damper. The rectangular profile accommodates standard trunk-line branch openings common in both new construction and retrofit duct systems.

Key Features

• Double deflection blade design provides two-plane airflow adjustment at the grille face
• Stamped steel construction for rigid, durable service in ceiling or sidewall mounting
• No integrated damper for unrestricted airflow volume through the opening
• White powder-coat finish for corrosion resistance and clean appearance
• Fits standard 10 inch by 4 inch rectangular duct openings

Compatibility

Designed as an OEM-style replacement or new-installation supply grille for residential and light commercial ducted HVAC systems with standard rectangular 10 inch by 4 inch duct openings in ceiling or sidewall configurations.

Installation Notes

Installation is typically performed by an HVAC technician or sheet metal installer. Power down the air handling system at the disconnect or breaker before removing an existing grille or accessing the duct opening. Secure the grille to the duct collar or surrounding surface per local mechanical code requirements. Blade adjustment should be completed after system startup to tune airflow direction under operating conditions.

Technical Specifications

• Opening Size: 10 inches x 4 inches
• Blade Configuration: Double deflection, adjustable horizontal and vertical
• Damper: None
• Material: Stamped steel
• Finish: White powder coat
• Mounting: Ceiling or sidewall

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: 220VO10X4
