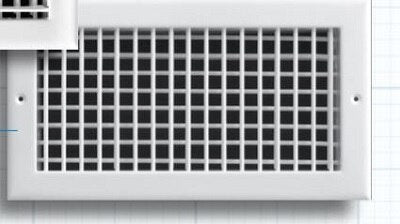

Rectorseal 220V18X6 Double Deflection Supply Grille 18x6

Product Description

The RECTORSEAL 220V18X6 is a double deflection ceiling and sidewall supply grille designed for elongated rectangular duct openings where extended airflow span is required. Constructed from stamped steel with a white powder-coated finish, it delivers both corrosion resistance and a clean architectural appearance. The adjustable double deflection blade configuration allows airflow direction control in both horizontal and vertical planes. The no-damper design keeps airflow unrestricted, making this grille suitable for supply applications that rely on separate balancing components elsewhere in the system. Licensed HVAC technicians and sheet metal installers are the typical trade professionals who specify and install this grille.

This grille is suited for residential and light commercial HVAC supply applications where flexible directional airflow control is needed without integrated damper balancing. The 18 inches by 6 inches face dimension accommodates larger supply duct openings in ceiling or sidewall installations. It is appropriate for systems using elongated rectangular duct configurations where both horizontal and vertical throw adjustment is required at the terminal grille location.

Key Features

• Double deflection blade design allows independent horizontal and vertical airflow direction adjustment
• No-damper configuration maintains unrestricted airflow capacity at the grille face
• Stamped steel construction provides structural durability for ceiling and sidewall mounting
• White powder-coated finish offers corrosion resistance and a clean visual presentation
• 18 inches by 6 inches face size accommodates larger elongated rectangular supply duct openings
• Suitable for both ceiling and sidewall supply installations

Compatibility

Designed as an OEM-style replacement or new-installation grille for residential and light commercial HVAC systems using elongated rectangular supply duct openings requiring a double deflection, no-damper terminal grille.

Installation Notes

Installation is performed by licensed HVAC technicians or qualified sheet metal installers. Power down the air handling unit and confirm the system is de-energized before removing an existing grille or securing a new one. Verify the rough duct opening dimensions match the grille neck size before fastening. Follow applicable mechanical codes, including local adoptions of the International Mechanical Code, for supply air terminal placement and clearance requirements.

Technical Specifications

• Face Dimensions: 18 inches x 6 inches
• Deflection Type: Double deflection, adjustable horizontal and vertical
• Damper: None
• Material: Stamped steel
• Finish: White powder coat
• Mounting Location: Ceiling or sidewall
• Application: Supply air

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: 220V18X6
