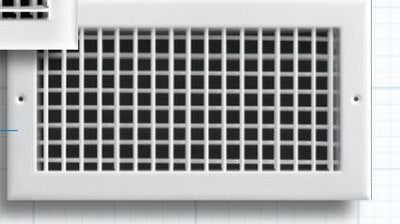

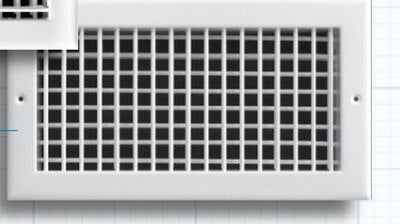

Rectorseal 220V10X6 Double Deflection Supply Grille 10x6

Product Description

The RECTORSEAL 220V10X6 is a double deflection ceiling and sidewall supply grille designed for residential and light commercial HVAC systems. Built from stamped steel with a white powder-coat finish, it features independently adjustable horizontal and vertical blades that allow full two-plane airflow direction control at the face. The grille ships without an integrated damper, so airflow volume passes through unrestricted while directional adjustment remains fully available to the technician. Face dimensions measure 10 inches by 6 inches, sized to fit standard rectangular duct openings in ceiling or sidewall installations.

This grille suits residential and light commercial HVAC supply applications where airflow direction must be tuned at the register face without sacrificing volume. Typical installations include ceiling plenum drops and sidewall supply runs in forced-air systems. The no-damper design is appropriate for zones where volume control is handled upstream at a balancing damper or VAV component, rather than at the grille itself.

Key Features

• Double deflection blade design provides independent horizontal and vertical airflow direction control
• No integrated damper allows unrestricted airflow volume through the face
• Stamped steel construction for structural rigidity in ceiling and sidewall applications
• White powder-coat finish resists corrosion and maintains appearance over time
• 10 x 6 inch face fits standard rectangular duct rough openings
• Suitable for both ceiling and sidewall supply mounting orientations

Compatibility

Designed as an OEM-style replacement or new-installation supply grille for residential and light commercial forced-air HVAC systems with standard rectangular duct openings.

Installation Notes

Installation is typically performed by an HVAC technician or sheet metal installer. Power down the air handling unit and close the supply damper at the air handler before removing or replacing any register or grille. Secure the grille to the duct collar or wall surface per the manufacturer mounting method and verify blade adjustment delivers the intended throw pattern before restoring system operation. Follow local mechanical codes for supply grille placement relative to occupant zones.

Technical Specifications

• Face Dimensions: 10 inches x 6 inches
• Blade Configuration: Double deflection, adjustable horizontal and vertical
• Damper: None
• Finish: White powder coat
• Material: Stamped steel
• Mounting Application: Ceiling or sidewall supply

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: 220V10X6
