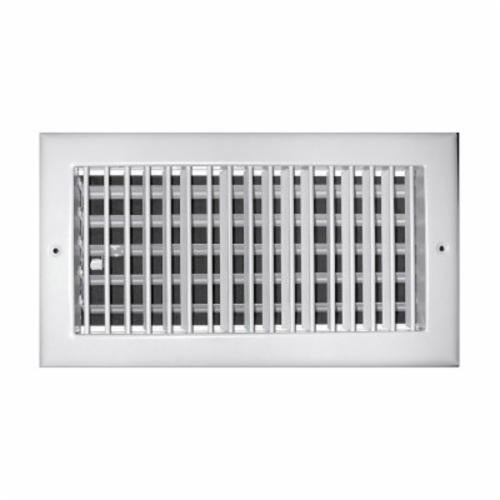

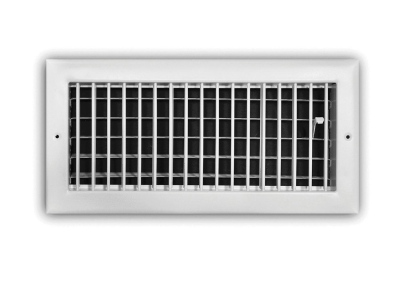

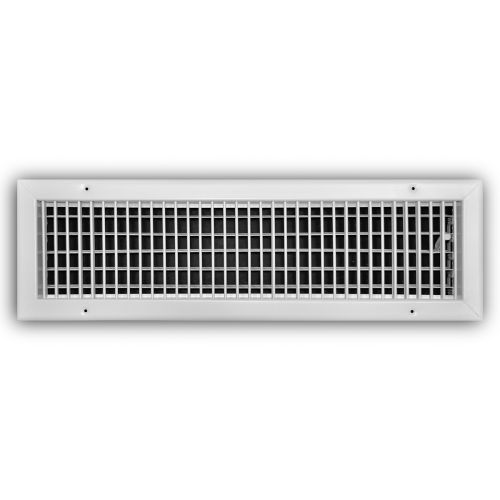

Rectorseal 210VM24X06 24 inches x 6 inches SGL Deflection VERT FR Blades Multi-SHTR DMPR Steel Ceiling/Sidewall Register

Product Description

The RECTORSEAL 210VM24X06 is a pristine white, single deflection steel register designed for ceiling or sidewall applications. It features individually adjustable vertical blades at 3/4" blade spacing and a steel SmoothGlide multi-shutter damper. This register delivers high-capacity airflow with a powder-coated finish and recessed screw holes.

• Steel construction
• 3/4" blade spacing
• Countersunk screw holes
• Individually adjustable horizontal or vertical blades

Product Highlights

This steel register features adjustable vertical blades, SmoothGlide technology and a multi-shutter damper for optimal airflow control in residential settings.

Product Information

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: 210VM24X06
• Country of Origin: Import

Technical Specifications

• Application: Ceiling/Sidewall
• Size: 24 x 6 in
• Fin/Blade Spacing: 3/4 in
• Composition: Steel
• Deflection: Single Deflection
• Market Type: Residential
• Insulated: NO
• Finish: Powder Coated
• Features: Rectangular
• Face Style: Blades, - Bar Type, Adjsutable
• Product Type: - Multi-Shutter
• Airflow: Supply
• Series: 210 Series
• Duct Height: 5-1/2 in
• Overall Width: 25-3/4 in
• Overall Depth: 2-1/4 in
• Blade Type: Adjustable Vertical Blade
• CFM: 310 to 1555 cfm
• Area: 120 sq-in
• Blade Spacing: 3/4 in
• Material: Steel
