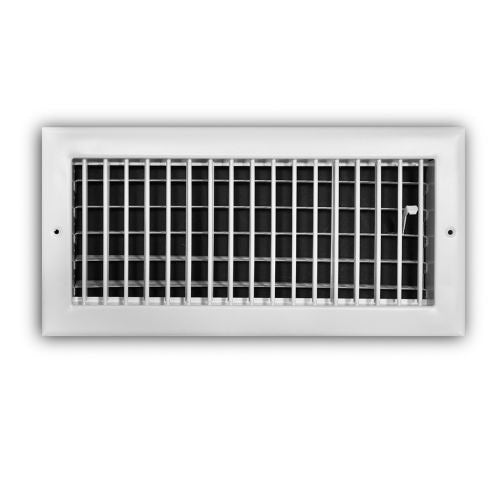

Rectorseal 210vm14x06 Single Deflection Register 14x6

Product Description

The RECTORSEAL 210vm14x06 is a single-deflection steel register designed for ceiling and sidewall HVAC supply air applications. Built with individually adjustable vertical blades set at 3/4-inch blade spacing, this register allows precise airflow direction control. The integrated SmoothGlide multi-shutter damper provides reliable volume control without requiring a separate damper component. Finished in white, it is suited for standard residential and light commercial duct openings measuring 14 inches by 6 inches. HVAC technicians and installers use this register as a finished supply-air termination point in forced-air distribution systems.

This register fits ceiling and sidewall installations where vertical blade deflection is required to direct conditioned air horizontally across a room. The multi-shutter damper allows airflow to be reduced or shut off at the register face without returning to the air handler. It is appropriate for residential new construction, renovation work, and replacement of worn or damaged registers in standard forced-air systems.

Key Features

• Single-deflection vertical blades for horizontal airflow direction control
• Individually adjustable blades at 3/4-inch blade spacing for fine airflow tuning
• Integrated SmoothGlide steel multi-shutter damper for volume control at the register face
• Steel construction for durability in long-term ceiling and sidewall installations
• White finish blends with standard residential ceiling and wall surfaces
• Nominal duct opening size: 14 inches x 6 inches

Compatibility

Designed as an OEM-style replacement or new-installation register for standard 14-inch by 6-inch supply air duct openings in residential and light commercial forced-air HVAC systems.

Installation Notes

This register is typically installed by HVAC technicians or qualified contractors as the final supply-air termination in a duct run. Power down the air handling unit before removing an existing register to avoid disturbing airflow during blade or damper adjustment. Secure the register to the wall or ceiling surface using the mounting holes provided, ensuring the duct collar is properly seated to prevent air bypass. Follow local mechanical codes when sizing and placing supply registers in conditioned spaces.
