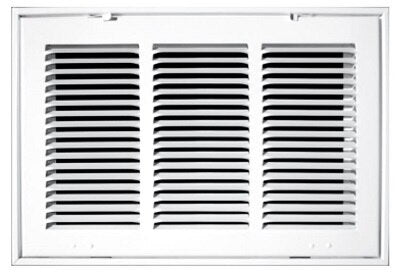

Rectorseal 190RF12X25 Removable Face Filter Grille 12x25

Product Description

The RECTORSEAL 190RF12X25 is a stamped steel return air filter grille with a removable face panel designed for residential HVAC systems. The face panel lifts away without tools, giving technicians and installers direct access to the internal filter rack for quick filter swaps during routine maintenance. The grille accepts standard 1-inch nominal air filters and is finished in a durable white powder coat that resists corrosion and presents cleanly against typical interior wall and ceiling surfaces. This unit covers a 12-inch by 25-inch return air opening, making it well suited for larger rectangular return duct terminations.

This filter grille is used in residential forced-air HVAC applications where return air filtration and grille aesthetics both need to be addressed at a single opening. It installs at wall or ceiling return air openings tied to central air handlers, furnaces, and heat pumps. The removable face design reduces service time compared to fixed-face grilles that require separate filter access panels. HVAC installers and service technicians typically specify this grille in new construction and retrofit applications where a clean finished look is required alongside accessible filtration.

Key Features

• Removable face panel allows filter servicing without additional access hardware
• Internal filter rack supports standard 1-inch nominal air filters
• Stamped steel construction provides rigid, durable framing at the return opening
• White powder coat finish resists corrosion and suits standard interior trim colors
• 12-inch by 25-inch face size accommodates larger rectangular return air openings

Compatibility

Designed as an OEM-style replacement or new-installation filter grille for residential forced-air HVAC return air openings accepting a 12-inch by 25-inch face-mount grille with a 1-inch nominal filter rack.

Installation Notes

Licensed HVAC technicians and installers typically handle return air grille installation as part of duct system commissioning or filter-system upgrades. Power down the air handler or furnace at the disconnect before removing an existing grille or servicing the filter. Secure the grille to the wall or ceiling framing using appropriate fasteners for the substrate. Verify that the duct opening dimensions match the grille face size before installation to ensure proper airflow and filter seating.

Technical Specifications

• Face Dimensions: 12 inches x 25 inches
• Filter Size Supported: 1-inch nominal air filter
• Material: Stamped steel
• Finish: White powder coat
• Application: Return air filtration

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: 190RF12X25
