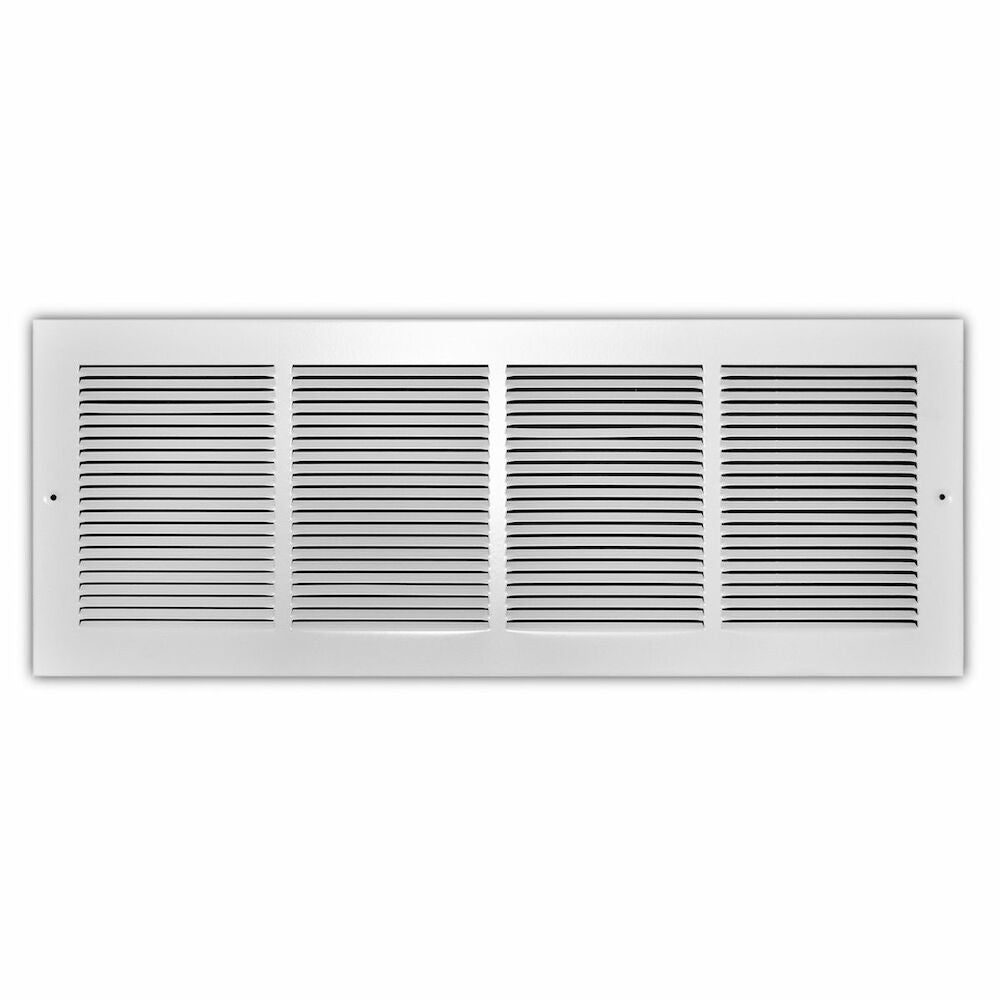

RECTORSEAL 17324X06 1-Way Stamped Face Return Air Grille

Product Description

The RECTORSEAL 17324X06 is a return air grille designed for efficient air circulation in HVAC systems. Made from durable steel, this grille has a one-way stamped face ideal for both ceiling and sidewall installations. It includes louvers that are pitched at thirty degrees, optimizing airflow for better heating or cooling efficiency. The mounting is straightforward, featuring countersunk screw holes for clean installation.

• Durable steel construction
• Designed for ceiling or sidewall installation
• Efficient airflow with a thirty-degree blade pitch

Product Highlights

This grille is crafted to facilitate the return air to the furnace, enhancing the air filtering and recirculation process. It supports airflow ranging from two hundred six to four hundred eighty cubic feet per minute, ensuring effective heating and cooling.

Product Information

Standard Information

• Brand: RECTORSEAL
• Product Name: 1-Way Stamped Face Return Air Grille

Technical Specifications

• Series: 173
• Width: 24 inches
• Height: 6 inches
• Thickness: 1/4 inches
• CFM: 206 to 480 cfm
• Area: 104 sq-in
• Deflection: 55 degrees
• Blade Spacing: 1/3 inches
• Material: Steel
• Finish: White Powder Coated
