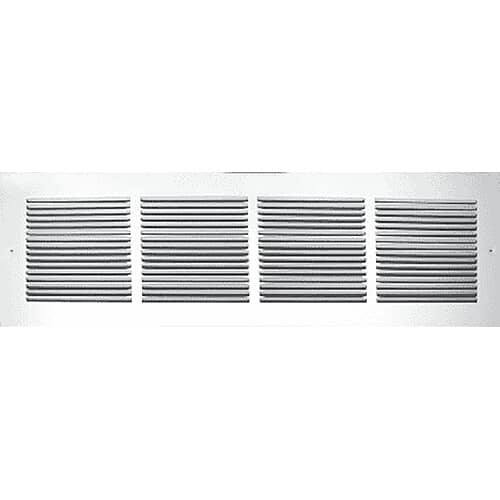

Rectorseal 173 14X08 Return Air Grille 14x8 White

Product Description

The RECTORSEAL 173 14X08 is a stamped-face return air grille designed for sidewall and ceiling installations in residential HVAC systems. It covers a 14-inch by 8-inch duct opening and delivers a free area of 84 square inches, supporting adequate airflow for standard return air applications. The grille features a pristine white powder-coated steel finish that blends cleanly into painted drywall surfaces. Countersunk mounting holes keep fastener heads flush, and the included 8-piece mounting hardware set simplifies installation. HVAC technicians and experienced DIYers install this grille as part of a complete return air pathway in forced-air heating and cooling systems.

This grille is suited for residential forced-air systems where a standard 14-inch by 8-inch return air opening is required at a sidewall or ceiling location. The stamped steel face and powder-coated finish make it appropriate for living spaces, hallways, and common areas where a clean, flush appearance is expected. Surface-mount style means it sits flat against the wall or ceiling surface without requiring a frame recess. Fin spacing of 1/3 inch provides consistent airflow distribution across the face of the grille.

Key Features

• Stamped steel face with pristine white powder-coat finish for a clean, flush look
• 14-inch by 8-inch grille size with 84 square inches of free area
• Countersunk mounting holes keep fastener heads recessed and flush
• Includes 8 mounting screws, each 2 inches long
• 1/3-inch fin spacing for uniform airflow distribution
• Surface-mount style compatible with sidewall and ceiling duct openings

Compatibility

Designed as an OEM-style replacement or new-installation return air grille for residential forced-air HVAC systems with a 14-inch by 8-inch sidewall or ceiling return air opening.

Installation Notes

Installation is typically performed by a licensed HVAC technician or qualified installer. Shut down the HVAC system at the thermostat and disconnect power at the air handler or furnace before accessing ductwork. Secure the grille using the included mounting hardware through the countersunk holes into the wall or ceiling framing around the duct collar. Verify the duct opening is clean and free of obstruction before fastening the grille in place.
