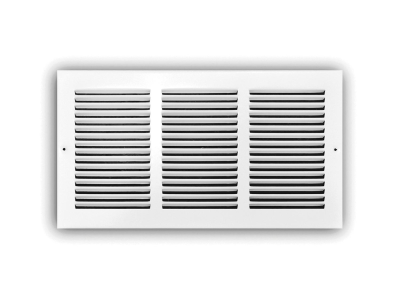

Rectorseal 17014X08 Grille Air Return Face Stamped Steel Powder Coated (14 in W x 8 in H x 1/4 in THK)

Product Description

The RECTORSEAL 17014X08 is a grille air return face, featuring a stamped steel construction with a powder-coated finish. This 1-way grille, part of the 170 series, measures 14 in W x 8 in H x 1/4 in THK. It is designed to return air to the furnace for filtering and recirculation, offering 1/2" blade spacing and a 55-degree deflection angle.

• Steel construction
• 1/2" blade spacing
• Countersunk screw holes

Product Highlights

Stamped steel return air grille with 1/2" blade spacing and powder-coated finish, suitable for residential ceiling/sidewall applications.

Product Information

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: 17014X08
• Country of Origin: Import

Technical Specifications

• MPN: 17014X08
• UPC: 80349217131
• Brand: RECTORSEAL
• Blade Spacing: 1/2 in
• Deflection Angle: 55 deg
• Effective Area: 77 sq-in
• Finish: Powder Coated
• Flow Rate (CFM): 156 to 361 cfm
• Height (in): 8in
• Material: Steel
• Overall Depth (in): 1/4 in
• Series: 170
• Size: 14 in W x 8 in H x 1/4 in THK
• Type: Flat Grill
• Width (in): 14in
• Deflection: 1-Way
• Application: Ceiling/Sidewall
• Composition: Steel
• Curved Blade: N
• Filter Size: Not Applicable
• Market Type: Residential
• Insulated: NO
• Features: Rectangular
• Face Style: Louvered, - Formed
• Airflow: Return
