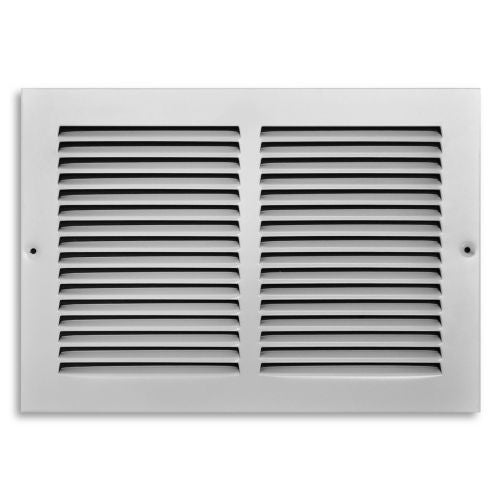

Rectorseal 17012X08 170 Stamped Return Grille 12 inchesX8 inches 1/2 inches Blade Spacing

Product Description

The RECTORSEAL 17012X08 is a 170 stamped return grille with 1/2" blade spacing. Constructed from stamped steel, this grille is designed for air return in ceiling and sidewall applications. Features a pristine white powder coat finish and countersunk screw holes for easy installation. Ideal for residential use.

• Steel construction
• 1/2" blade spacing
• Countersunk screw holes

Product Highlights

This RECTORSEAL stamped return grille provides efficient airflow and a clean aesthetic for residential ceiling and sidewall applications.

Product Information

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: 17012X08

Technical Specifications

• Brand: RectorSeal
• Size: 12 x 8
• Composition: Steel
• Curved Blade: N
• Deflection: 1-Way
• Filter Size: Not Applicable
• Market Type: Residential
• Insulated: NO
• Finish: Powder Coated
• GRD Material: Steel
• Features: Rectangular
• Face Style: Louvered, - Formed
• Airflow: Return
• Secondary brand: TRUaire
• Main function: Grille
• Product line / family name: HVAC > Grilles / Registers / Diffusers (GRD) > Air return
• Sub-range name: 170 series
• Functions: Grille
• Design type: stamped face
• Blades: 1-way blades
• Function: air return function
• Application: for ceiling / sidewall applications
• Application2: for residential applications
• Mounting method: 2 mounting holes
• Dimensions: H8" x W12" nominal frame size
• Dimensions Metric: H203.2mm x W304.8mm nominal frame size
• Blade spacing: 1/2" (12.7mm) blade spacing
• Overall depth: 1/4" (6.4mm) overall depth
• Material: Steel frame / blades
• Manufacturer product reference: 17012X08
• Product status at the manufacturer: Commercialized
