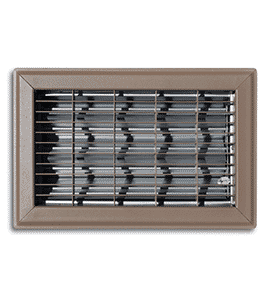

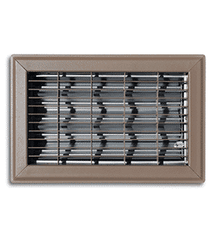

Rectorseal 154r Floor Bar Return Air Grille 10x24 Brown

Product Description

The RECTORSEAL 154r is a floor-mounted return air bar grille designed for residential HVAC systems. Built from steel with a textured non-scuff brown powder coat finish, it provides a durable, low-profile return air opening at floor level. The grate-face style delivers 75 percent average free area, allowing strong, unobstructed airflow back to the air handler or furnace. Overall dimensions measure 11.75 inches height by 25.75 inches width by 0.9375 inches depth, fitting a standard 10-inch by 24-inch floor opening. HVAC technicians and installers specify this grille for new construction and replacement applications where a surface-mount, damper-free return is required.

The 154r is suited for residential HVAC installations where return air is routed through the floor. Surface-mount installation means the grille sits flush over the floor opening without a sub-frame. The absence of a damper makes it appropriate for fixed, always-open return air paths. The textured brown powder coat blends with common wood and laminate flooring finishes, reducing visual contrast in living spaces while maintaining full airflow capacity.

Key Features

• 75 percent average free area for high-volume return airflow
• Steel construction with textured non-scuff brown powder coat finish
• Grate-face style, surface-mount installation over standard floor opening
• Fits 10-inch by 24-inch floor duct opening
• Damper-free design for fixed return air paths
• Overall size: 11.75 inches x 25.75 inches x 0.9375 inches

Compatibility

Designed as an OEM-style replacement or new-installation floor return air grille for residential forced-air HVAC systems using a standard 10-inch by 24-inch floor duct opening.

Installation Notes

Installation is performed by HVAC technicians or qualified installers. Power down the air handler or furnace at the disconnect or breaker before working near return air ductwork. The surface-mount design secures directly to the floor surface over the rough opening — verify the opening dimensions match before installation. No damper adjustment is required or available on this grille model.

Technical Specifications

• Grille Size: 10 inches x 24 inches
• Overall Height: 11.75 inches
• Overall Width: 25.75 inches
• Overall Depth: 0.9375 inches
• Material: Steel
• Finish: Textured Non-Scuff Brown Powder Coat
• Free Area: 75 percent average
• Face Style: Grate
• Mounting Style: Surface
• Type: Return Air
• Damper: None
• Application: Residential

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: 154r
