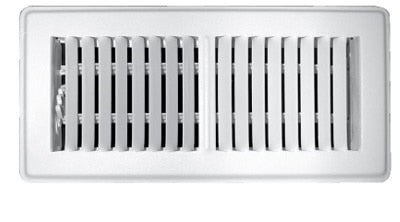

Rectorseal 150MW6X12 2-way Floor Grille 6x12 in White

Product Description

The RECTORSEAL 150MW6X12 is a two-way floor supply grille designed for residential HVAC duct systems. Constructed from stamped steel with a white powder-coat finish, it delivers directional airflow control through a fixed two-way louver pattern. The face opening measures 6 inches by 12 inches, matching standard floor duct rough openings in that size range. Licensed HVAC technicians and mechanical contractors install this grille as part of forced-air supply systems where extended lateral airflow distribution is needed at floor level. The powder-coat finish resists corrosion and maintains a clean appearance in occupied spaces.

This grille is suited for residential forced-air HVAC floor supply applications. It fits into standard 6-inch by 12-inch floor duct openings and is commonly installed in rooms where floor registers are the primary supply air delivery point. The two-way louver orientation allows the installer to direct airflow along two axes, making it practical for rooms that benefit from wider air distribution patterns across the floor plane.

Key Features

• Stamped steel construction for durable, long-term performance in floor register applications
• White powder-coat finish provides corrosion resistance and a clean visual fit in standard interiors
• Two-way louver design allows directional airflow control along two axes
• 6-inch by 12-inch face dimension fits standard floor duct openings of that size
• Fixed louver pattern requires no moving parts, reducing maintenance needs

Compatibility

Designed as an OEM-style replacement or new-installation floor grille for residential forced-air HVAC systems with standard 6-inch by 12-inch floor duct supply openings.

Installation Notes

Installation is performed by licensed HVAC technicians or qualified mechanical contractors. Power down the air handler or furnace at the disconnect before removing an existing register or grille. Drop the grille into the floor duct opening and secure using the manufacturer-provided fastening method. Follow all applicable local mechanical codes during installation.

Technical Specifications

• Face Dimensions: 6 inches x 12 inches
• Louver Type: 2-Way Fixed
• Material: Stamped Steel
• Finish: White Powder Coat
• Application: Floor Supply

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: 150MW6X12
