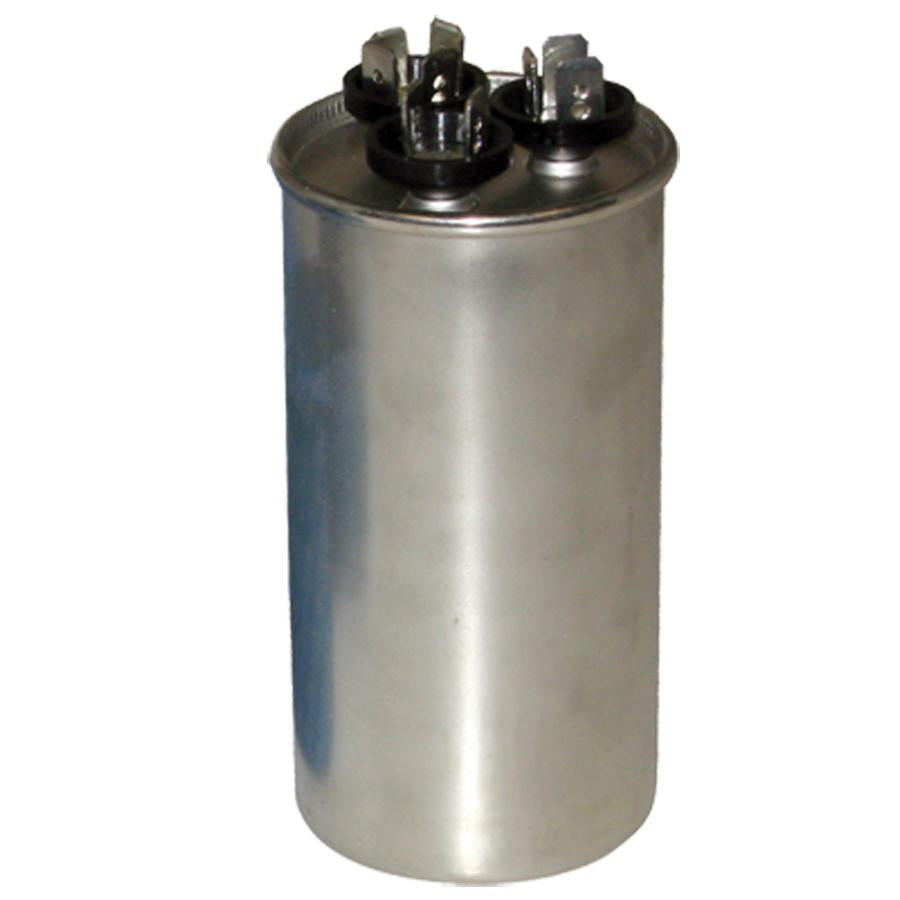

Rectorseal 14286 Capacitor 40 uF 5 uF 440/370 V Round 2-Section

Product Description

The RECTORSEAL 14286 is a dual section motor run capacitor designed for reliable performance. This round aluminum capacitor features a capacitance of 40 uF and 5 uF, with a voltage rating of 440/370 V. It operates at a 50/60 Hz frequency and is suitable for temperatures ranging from -40 to 70 deg C, offering a 60,000-hour operational life. It is UL Listed and CSA Certified, meeting EIA-456A and Tecumseh H-115 standards.

• Offers the widest selection of ratings in the industry
• Non-PCB capacitors with a physical interrupter for safety
• Meets EIA-456A industry standard (60,000 hours)

Product Highlights

OEM Grade, Made in USA, and certified to UL and CSA standards for safety.

Product Information

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: 14286
• Country of Origin: USA

Technical Specifications

• Capacitance: 40 uF, 5 uF
• Voltage Rating: 440/370 V
• Shape: Round
• Item Name: Motor Run Capacitor
• Type: Dual Section
• Standards/Approvals: UL Listed and CSA Certified
• Frequency Rating: 50/60 Hz
• Material: Aluminum
• Operating Temperature: -40 to 70 deg C
• Operational Life: 60000 hr
• Terminals: 4-Blades, 3-Blades, 2-Blades
