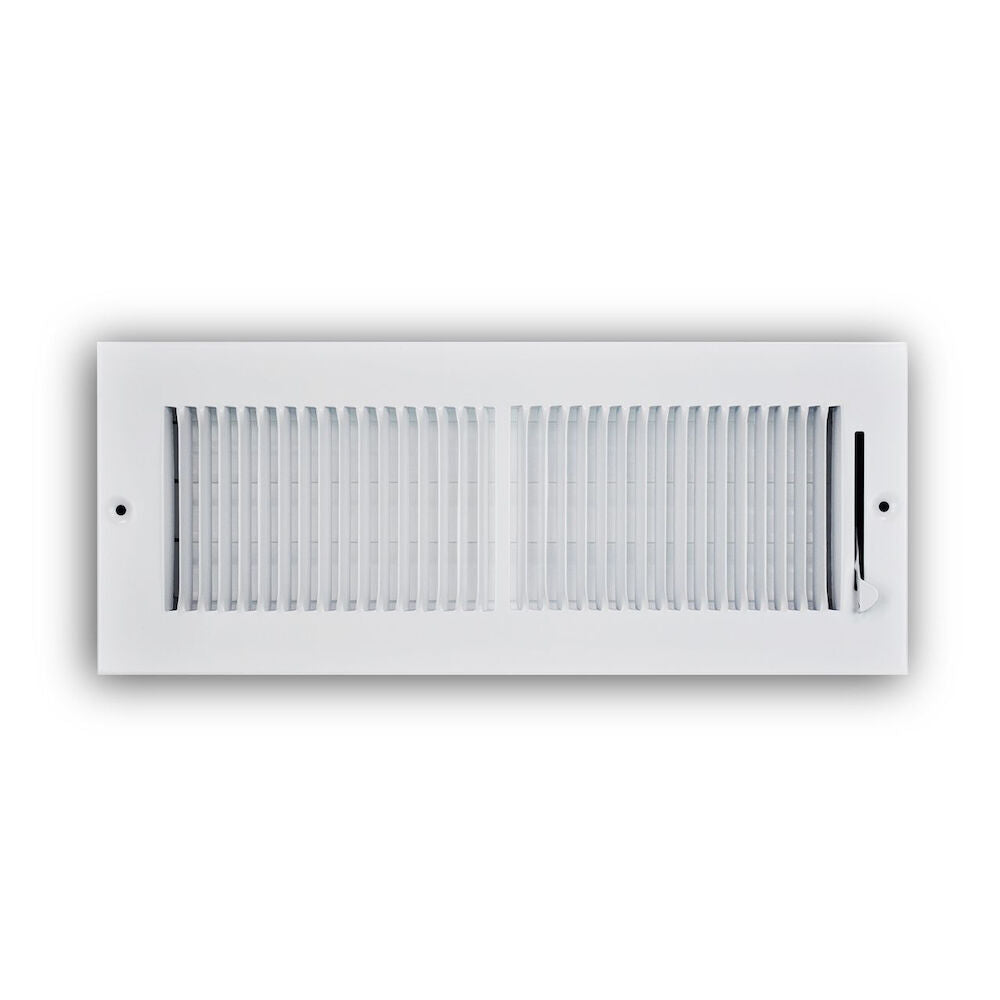

RECTORSEAL 132M12X04 2-Way Register

Product Description

The RECTORSEAL 132M12X04 is a two-way register made of steel. It has stamped louvers and a specific blade pitch. This register comes with a multi-shutter damper, which you can operate with a finger lever. It is suitable for ceiling or sidewall mounting and includes countersunk screw holes for easy installation.

• Steel construction with stamped louvers.
• Includes multi-shutter damper.
• Designed for ceiling or sidewall application.

Product Highlights

This 2-way register is efficient for airflow management in HVAC systems. Ideal for residential or commercial use.

Product Information

Standard Information

• Manufacturer Part Number: 132M12X04
• Series: TRUaire

Technical Specifications

• Type: 2-Way
• Mounting Type: Ceiling / Sidewall
• Material: Steel
• Finish: White powder coat
• Size: 12 x 4 inches
• Flow Rate: 54 to 180 cfm
• Blade Pitch: 30 degrees
• Blade Spacing: 1/3 inches
• Depth: 1-1/2 inches
• Insulated: No
• Louver Thickness: 1/3 inches
• Louver Type: Stamped
• Nominal Duct Area: 0.33 sq ft
• Overall Height: 5-3/4 inches
• Overall Width: 13-3/4 inches
• Shape: Rectangle
• Throw: 5.5 to 18 ft
• Effective Area: 30 sq-in
• Deflection: 55 degrees
• Origin: Import
