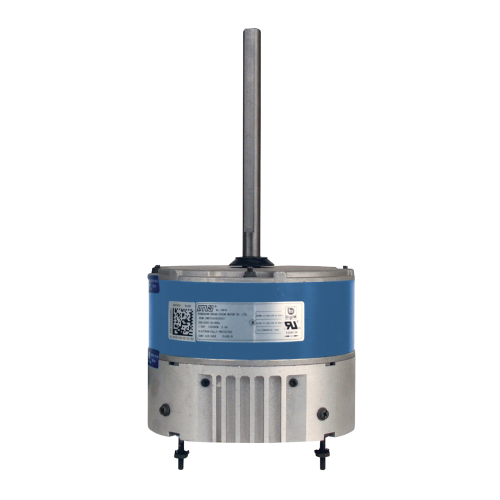

Rectorseal 10874 Azure Cond Fan Mtr 1/8-1/3 HP

Product Description

The RECTORSEAL 10874 Azure ECM Condenser Fan replaces a multitude of PSC motors and does not require a capacitor. It is multi horsepower and self-adjusting. The motor features electronical thermal protection and connects the same as a standard PSC condenser fan motor.

• Azure ECM Condenser Fan
• Replaces a Multitude of PSC Motors
• No capacitor is required

Product Highlights

The RECTORSEAL 10874 is easy to install and features 825/1075 RPM and ball bearing.

Product Information

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: 10874

Technical Specifications

• Bearing: Ball
• Duty: Continuous
• Enclosure: CAO
• HP (Max.): 1/3
• Motor Type: ECM
• Phase: Single
• Rotation: REV
• RPM: 825/1075
• Thermal Protection: Electronical Protection
• Speeds: 1
• Voltage Rating: 208 to 230 VAC
• Horse Power: 1/8 HP
• Shaft Diameter: 1/2 inch
• Shaft Length: 6-1/2 inch
• Frequency Rating: 50 Hz, 60 Hz
• Insulation Class: B
• RPM Range: 925-1200
