Rectorseal 10860 Azure PSC & X-13 motor 1/5-1/2 hp

Product Description

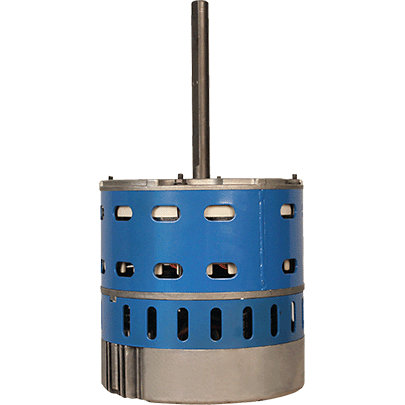

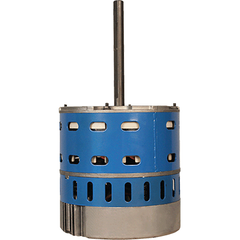

The RECTORSEAL 10860 is an AZURE PSC & X-13 motor, designed as an ECM (Electronically Commutated Motor) direct drive blower motor. It operates within a power range of 1/5 to 1/2 hp and is compatible with 120-240V electrical systems. This motor features 5 selectable speeds and reversible rotation, making it suitable for various HVAC and blower applications requiring efficient and controlled air movement.

• ECM (Electronically Commutated Motor) technology for energy efficiency.
• Features 5 speeds and reversible rotation for application flexibility.
• Supports a wide voltage range of 120-240V and power from 1/5 to 1/2 hp.

Product Highlights

Efficient ECM direct drive blower motor with versatile power and speed options.

Product Information

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: 10860

Technical Specifications

• Diameter: 5.5"
• Frame: 48
• Motor Type: ECM (Electronically Commutated Motor), Digi-Motor, Direct Drive Blower Motor
• Mount: Belly Band
• Phase: Single
• Power: 1/5 - 1/2 hp
• Rotation: Reversible
• RPM: 1075
• RPM Range: 901 to 1200
• Series: AZURE
• Speed: 5
• Voltage: 120-240V
