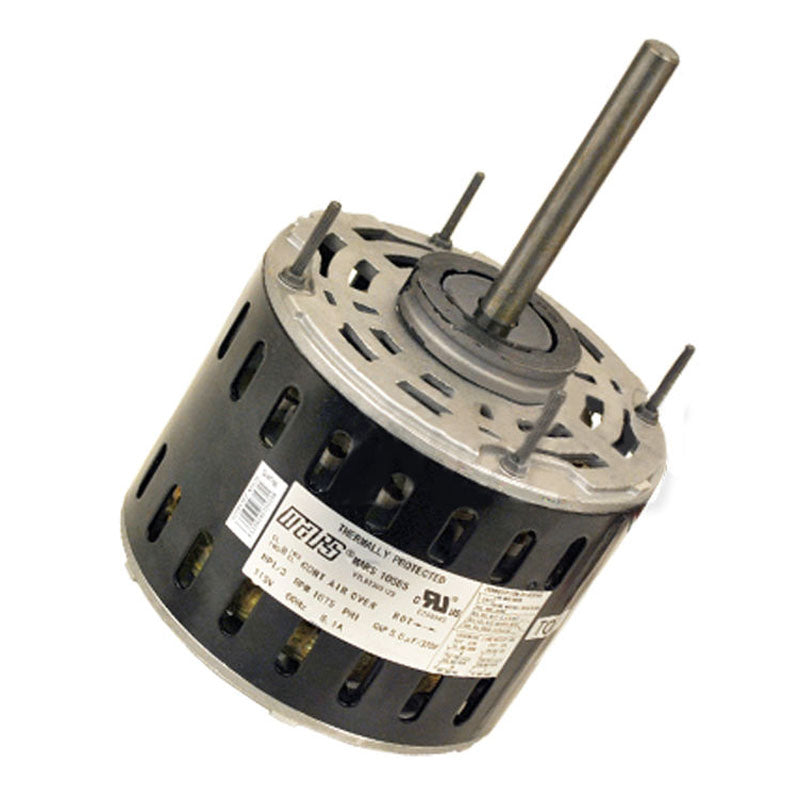

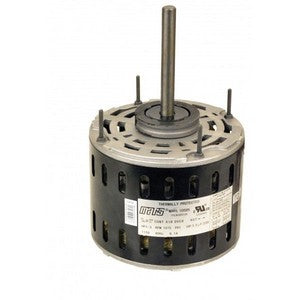

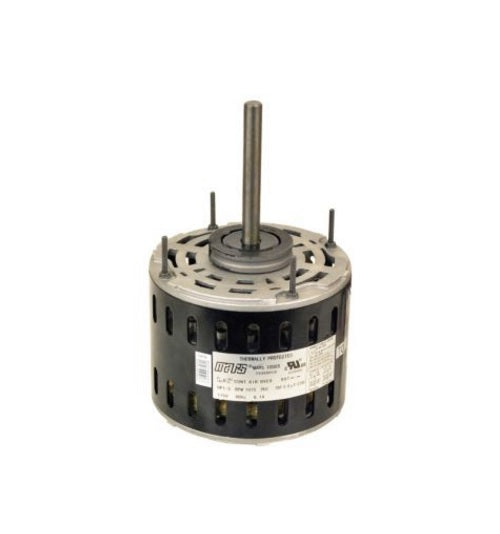

Rectorseal 10587 mars blower motor 1/2 hp 115 vac 1075 rpm 48 frame

Product Description

The Rectorseal 10587 Blower Motor is a direct-drive furnace blower motor designed for efficient air movement in heating systems. This 115 VAC, 1/2 Hp motor operates at 1075 RPM with a 7.5 A full load, featuring a 1-phase, 60 Hz power supply. Its open-air over enclosure and 48 frame design make it suitable for furnace applications, providing reliable performance for residential and commercial heating units.

• Reversible rotation
• All angle sleeve bearings
• Overload protection

Product Highlights

This direct-drive blower motor offers versatile installation with all-angle sleeve bearings and reversible rotation, ensuring efficient air circulation in furnace systems.

Product Information

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: 10587

Technical Specifications

• Type: Blower Motor
• RPM: 1075 RPM
• Voltage Rating: 115 VAC
• Horse Power: 1/2 HP
• Phase: 1 Phase
• Shaft Diameter: 1/2 inch
• Shaft Length: 4 inch
• Drive Type: Direct Drive
• Bearing Type: Sleeve
• Amperage Rating: 7.5 A Full Load
• Frequency Rating: 60 Hz
• Insulation Class: B
