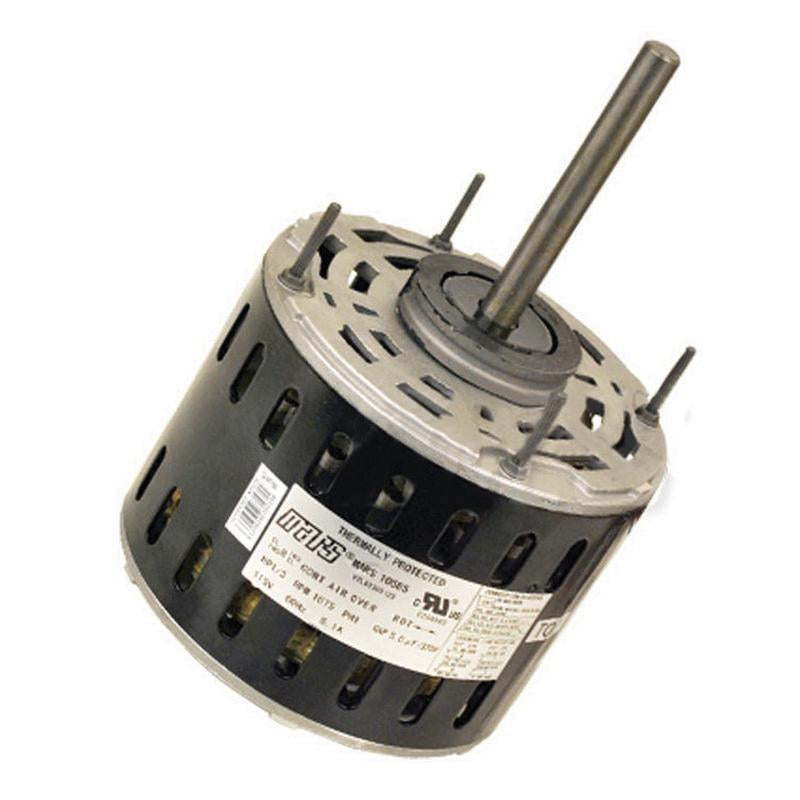

Rectorseal 10583 blower motor 1/4 hp 1075 rpm speed

Product Description

The RECTORSEAL 10583 Blower Motor is a direct-drive, 1-phase unit designed for furnace applications. Operating at 115 V and 4.2 A, it delivers 1/4 hp at 1075 rpm. This 3-speed motor features an open-air over enclosure and all-angle sleeve bearings, ensuring versatile mounting. It includes 2-1/4 inch resilient rings for base mounting and is electrically reversible, suitable for continuous fan-duty operation.

• Electrically reversible rotation for flexible installation.
• Features all-angle sleeve bearings and open-air over enclosure.
• Includes 2-1/4 inch resilient rings for base mounting.

Product Highlights

This 1/4 hp, 115 V, 1075 rpm direct-drive blower motor is ideal for furnace applications, offering 3-speed operation and all-angle mounting.

Product Information

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: 10583

Technical Specifications

• Type: Blower Motor
• RPM: 1075 rpm
• Input Voltage: 115 V
• Horsepower: 1/4 HP
• Phase: 1-Phase
• Shaft Diameter: 1/2 inch
• Shaft Length: 4-1/2 inch
• Drive Type: Direct
• Bearing Type: Sleeve
• Amperage: 4.2 A
• Frequency: 60 Hz
• Insulation Class: B
• Motor Enclosure: Open Air Over
• Frame: 48
• Rotation: Reversible
• Speed Settings: 3
• Mounting Type: All Angle
• Ambient Temperature: 60 deg C
• Diameter: 5-1/2 inch
• Capacitor: 5 uF at 370 VAC
