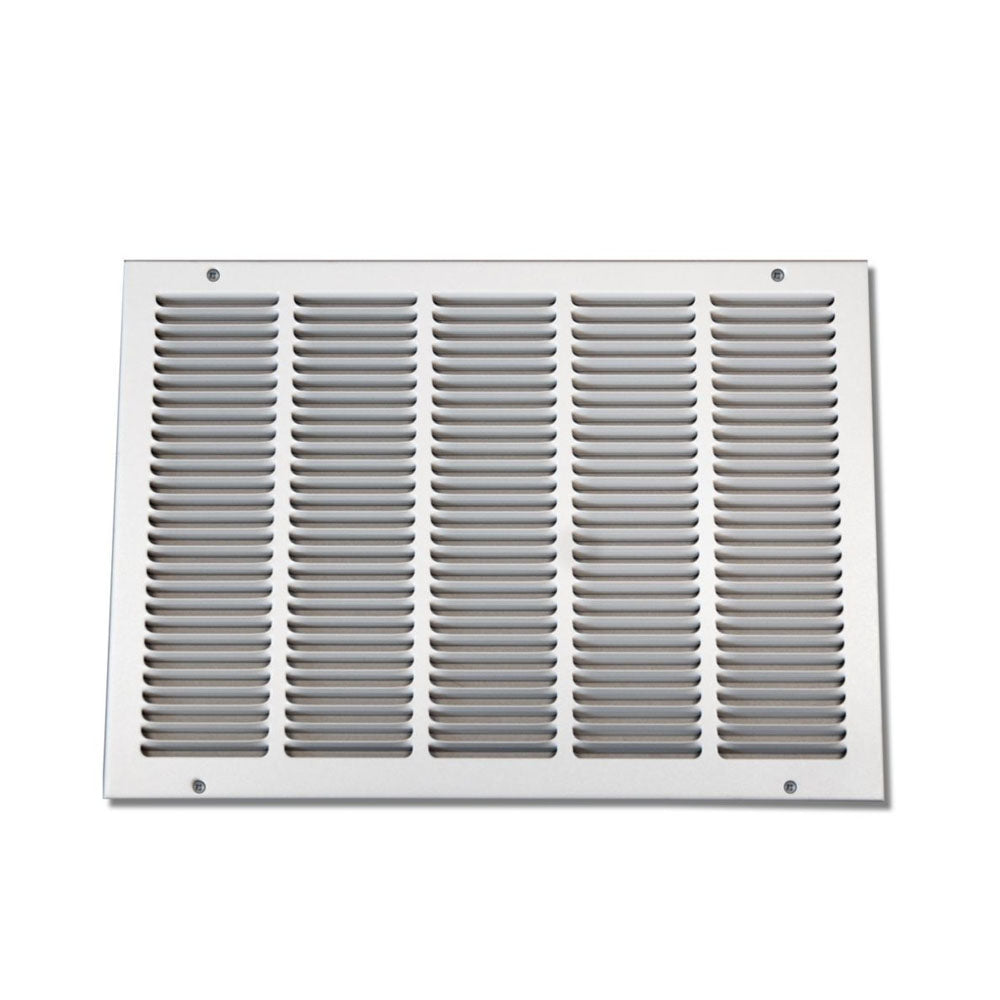

Rectorseal 1050-20X6 Stamped Ra Grille 20X6 REPLACEMENT 105020X6

Product Description

The RECTORSEAL 1050-20X6 Stamped Ra Grille 20X6 is designed for air return in ceiling and sidewall applications. It features 1/2" spacing louvers at a 25° pitch and is stamped from cold roll steel. Install with louvers in up or down position for best duct concealment. It has countersunk mounting holes for flush appearance.

• 1/2" spacing louvers at 25° pitch
• Stamped from cold roll steel
• Install with louvers in up or down position for best duct concealment

Product Highlights

This grille is suitable for residential applications and has a steel frame with stamped steel louver blades. It is designed for surface mounting.

Product Information

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: 1050-20X6

Technical Specifications

• BRAND: RECTORSEAL CORPORATION
• Product SKU: 1050-20X6
• Manufacturer: CSW Industrials Inc
• Brand: RectorSeal®
• MPN: 1050-20X6
• Fonction principale: Grille
• Nom de la gamme / famille de produits: HVAC > Grilles / Registers / Diffusers (GRD) > Air return
• Nom de la sous-gamme: 1050 series
• Fonctions: Grille
• Type de conception: stamped face 25° fixed blades air return function for ceiling / sidewall applications for residential applications horizontal blade (parallel to the width)
• Mode de montage: Surface mounting
• Dimensions: H6" x W20" nominal frame size H152.4mm x W508mm nominal frame size 1/2" (12.7mm) blade spacing 1/4" (6.4mm) overall depth
• Matériau: Steel frame Stamped steel louver blades
• Référence produit fabricant: 1050-20X6
• Statut du produit chez le fabricant: Commercialized
