Rectorseal 1050-14X8 Return Air Grille (14X8) REPLACEMENT 105014X8

Product Description

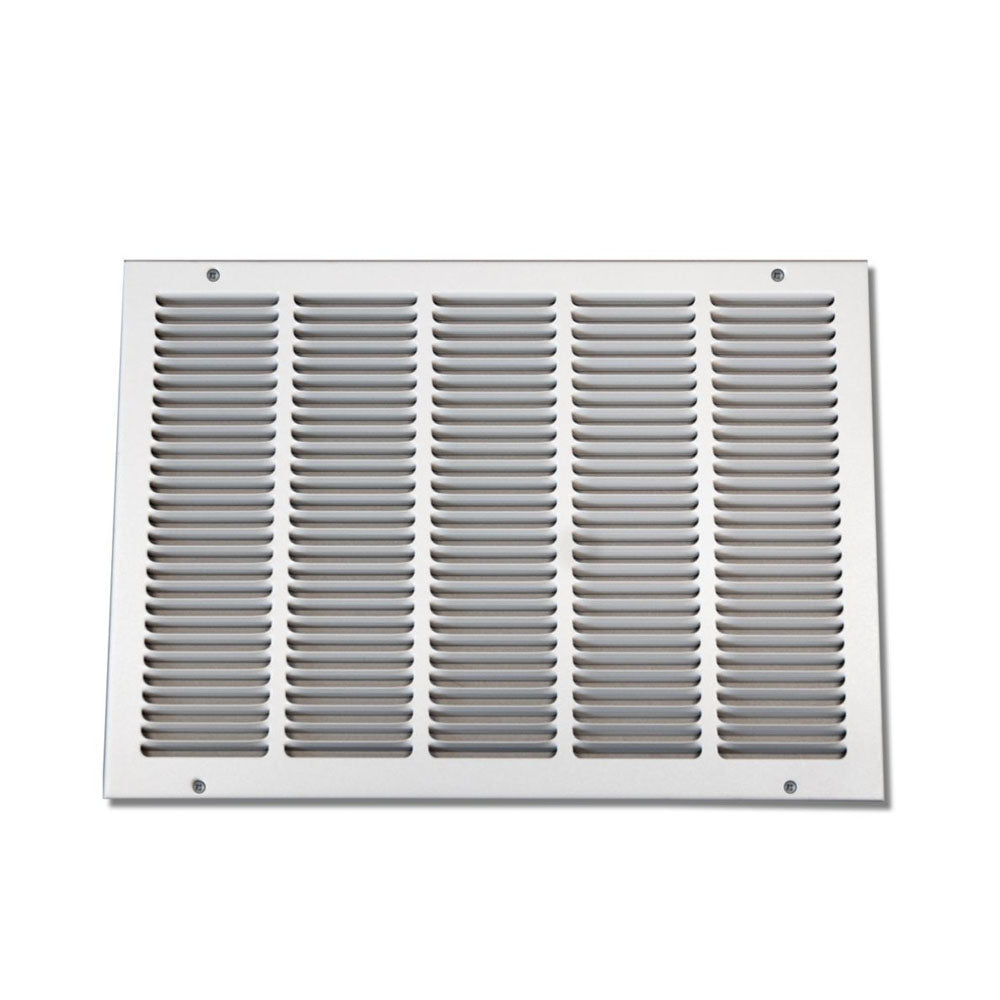

The RectorSeal 1050-14X8 Return Air Grille is designed for ceiling or sidewall applications. Features include a stamped face with 25° fixed blades and an air return function. Constructed with a steel frame and stamped steel louver blades, it has a nominal frame size of H8" x W14" with 1/2" blade spacing. Equivalent to 105014X8.

• 1/2" spacing louvers at 25° pitch
• Stamped from cold roll steel
• Install with louvers in up or down position for best duct concealment

Product Highlights

The Rectorseal 1050-14X8 grille is ideal for residential HVAC systems, providing efficient air return with a durable steel construction.

Product Information

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: 1050-14X8

Technical Specifications

• Primary brand: Rectorseal
• Main function: Grille
• Product series / family name: HVAC > Grilles / Registers / Diffusers (GRD) > Air return
• Sub-range name: 1050 series
• Functions: Grille
• Design: stamped face 25° fixed blades air return function for ceiling / sidewall applications for residential applications horizontal blade (parallel to the width)
• Mounting mode: Surface mounting
• Dimensions: H8" x W14" nominal frame size H203.2mm x W355.6mm nominal frame size 1/2" (12.7mm) blade spacing 1/4" (6.4mm) overall depth
• Material: Steel frame Stamped steel louver blades
• Order code / Manufacturer SKU: 1050-14X8
• Manufacturer product status: Commercialized
• Equivalent to: 105014X8
