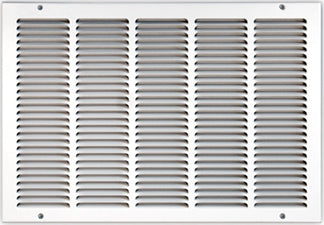

Rectorseal 1050-14X6 Grille - Stamped Face - 25° Fixed Blades - H6 inches x W14 inches Equivalent to 105014X6

Product Description

The Rectorseal 1050-14X6 is a grille with a stamped face and 25° fixed blades, designed for air return in ceiling or sidewall applications. This grille, part of the SHOEMAKER 1050 series, features a steel frame and stamped steel louver blades. It has a nominal frame size of H6" x W14" and a 1/2" blade spacing. Designed for surface mounting.

• Features 1/2" spacing louvers at 25° pitch.
• Stamped from cold roll steel.
• Install with louvers in up or down position for best duct concealment.

Product Highlights

This grille is ideal for residential HVAC systems, providing efficient air return with a durable steel construction and a soft white finish.

Product Information

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: 1050-14X6

Technical Specifications

• Primary brand: Rectorseal
• Secondary brand: SHOEMAKER
• Main function: Grille
• Product series / family name: HVAC > Grilles / Registers / Diffusers (GRD) > Air return
• Sub-range name: 1050 series
• Functions: Grille
• Design: stamped face, 25° fixed blades, air return function, for ceiling / sidewall applications, for residential applications, horizontal blade (parallel to the width)
• Color: Soft white
• Mounting mode: Surface mounting
• Dimensions: H6" x W14" nominal frame size, H152.4mm x W355.6mm nominal frame size, 1/2" (12.7mm) blade spacing, 1/4" (6.4mm) overall depth
• Material: Steel frame, Stamped steel louver blades
• Order code / Manufacturer SKU: 1050-14X6
• Manufacturer product status: Commercialized
• Equivalent to: 105014X6
• Manufacturer: CSW Industrials Inc
• Series: 1050
• Type: 1-Way Return Grille
• Size: 14 x 6 in
• Face: Stamped
