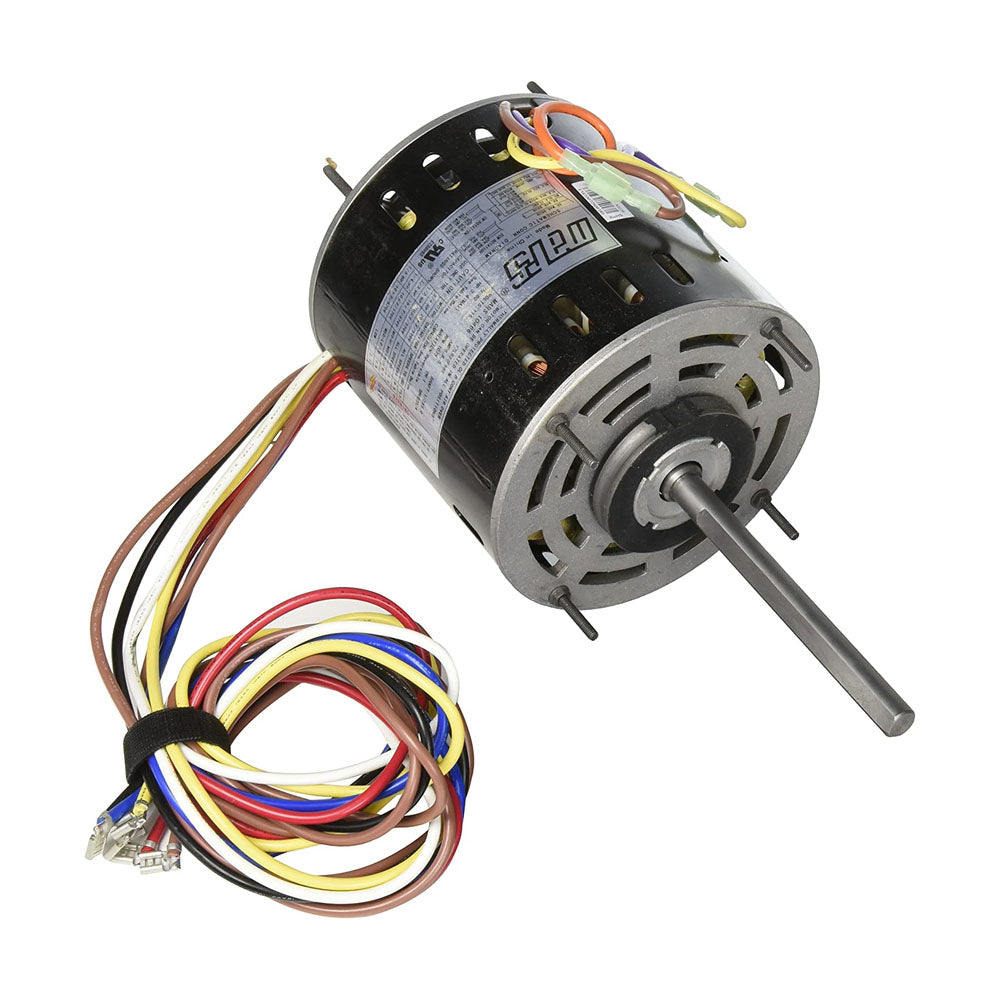

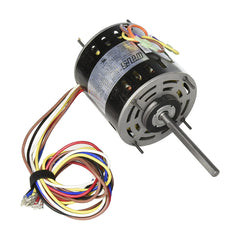

Rectorseal 10466 Blower Motor 3/4 hp

Product Description

RECTORSEAL 10466 is a Blower Motor designed for direct-drive applications. This 115 VAC, 8.5 A motor operates at 1075 rpm with a 3/4 hp output, suitable for various HVAC systems. It features a 1 ph Phase and 60 Hz frequency, making it ideal for residential and light commercial blower motor replacements. The open air over motor enclosure and 48 frame design ensure efficient operation.

• Rheem mounting holes for easy installation
• 2-1/4 inch resilient rings for secure mounting
• Thermal overload protection enhances motor longevity

Product Highlights

Multi-horsepower direct-drive blower motor with 4 speeds and ball bearings for reliable performance.

Product Information

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: 10466

Technical Specifications

• Type: Blower Motor
• Motor Type: PSC
• RPM: 1075 rpm
• Input Voltage: 115 VAC
• Multi-rated Horse Power: 1/5-3/4 hp
• Horse Power Max: 3/4 hp
• Phase: 1 ph
• Shaft Diameter: 1/2 inch
• Shaft Length: 5.8 inch
• Drive Type: Direct
• Bearing Type: Ball
• Amperage Rating: 8.5 A
• Frequency: 60 Hz
• Insulation Class: B
• Enclosure Type: Open Air Over Motor
• Number of Speeds: 4
• Rotation: Reversible
• NEMA Frame Size: 48
• Certifications: CUL
• Operating Temperature: 40 deg C
• Diameter: 5.5 in
• Length: 11.53 in
