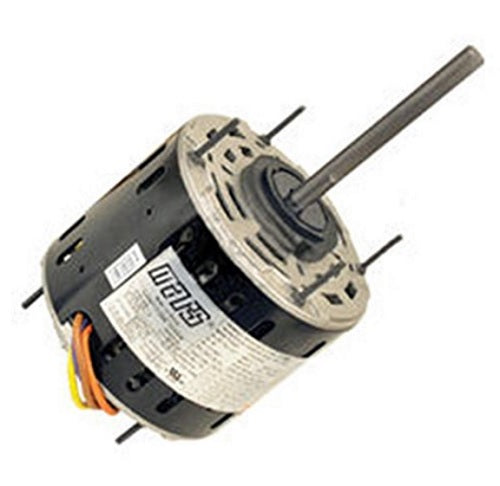

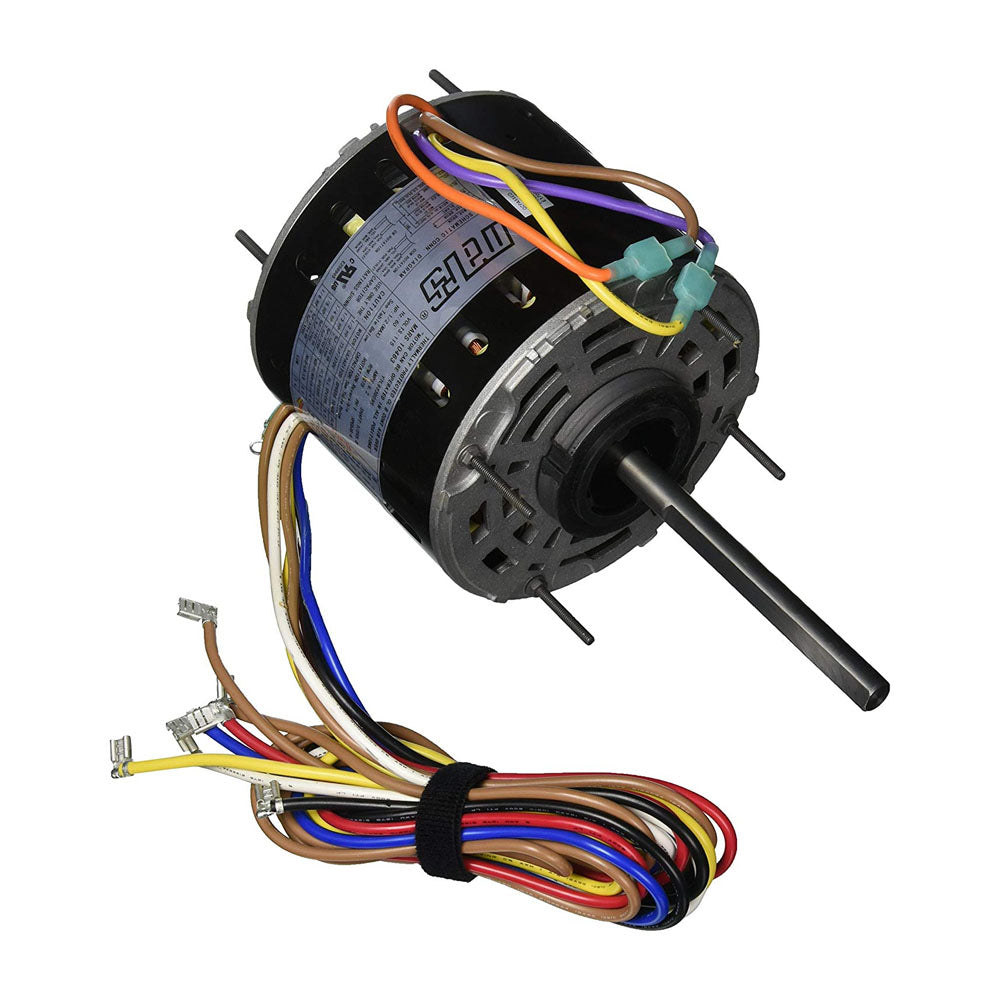

Rectorseal 10463 Mars® Furnace Blower Motor 115 VAC 1/6 to 1/2 hp

Product Description

The RECTORSEAL 10463 Mars® Furnace Blower Motor operates at 115 VAC, with a power range of 1/6 to 1/2 hp and a speed of 1075 rpm. It features an open air over motor enclosure and a 48 frame. Designed for direct drive applications, it has a 1/2 inch diameter and 5-1/2 inch long shaft.

• Capacitor 15/7.5/5 uF at 370 VAC
• Automatic thermal protection
• 2-1/4 in resilient rings mounting

Product Highlights

Ideal for truck stock, this motor covers 115 volt applications from 1/6 through 3/4 HP and features Rheem shell mounting holes.

Product Information

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: 10463

Technical Specifications

• Type: Blower Motor
• RPM: 1075 rpm
• Voltage Rating: 115 VAC
• Horse Power: 1/6 HP
• Phase: 1 ph
• Shaft Diameter: 1/2 inch
• Shaft Length: 5-1/2 inch
• Drive Type: Direct
• Bearing Type: Sleeve
• Amperage Rating: 6.2 A
• Frequency Rating: 60 Hz
• Insulation Class: B
