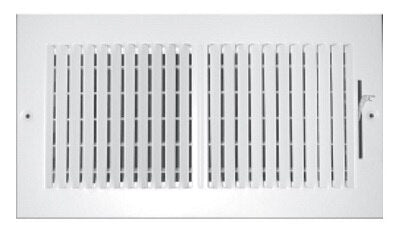

Rectorseal 102M10X8 Ceiling Sidewall Register 10x8 in

Product Description

The RECTORSEAL 102M10X8 is a stamped steel supply register designed for ceiling and sidewall HVAC supply installations. The face dimension measures 10 inches by 8 inches, fitting standard rectangular duct openings of that size. An integrated multi-shutter damper provides adjustable airflow control directly at the grille, allowing the installer to balance output without additional inline components. A white powder coat finish delivers corrosion resistance and a clean appearance suited to residential and light commercial environments. Licensed HVAC technicians and mechanical contractors install this register as part of a ducted forced-air supply system.

This register is suited for residential and light commercial HVAC supply-side applications where the duct terminates at a ceiling or sidewall penetration. The fixed blade configuration directs conditioned air into the occupied space, while the multi-shutter damper allows on-site airflow adjustment. Typical installations include bedroom, hallway, and common-area supply outlets in ducted split systems, heat pumps, and air handler setups where a clean architectural finish is required.

Key Features

• Stamped steel construction for rigid, long-lasting performance
• White powder coat finish for corrosion resistance and clean appearance
• Integrated multi-shutter damper for adjustable airflow control at the grille
• 10 x 8 inch face dimension fits standard rectangular duct openings
• Suitable for ceiling and sidewall supply installations

Compatibility

Designed as an OEM-style replacement or new-installation supply register for residential and light commercial ducted forced-air HVAC systems requiring a 10 x 8 inch ceiling or sidewall register with damper.

Installation Notes

Installation is performed by a licensed HVAC technician or qualified mechanical contractor. Power down the air handler or furnace before fitting the register to the duct opening. Secure the register face to the wall or ceiling surface using the provided mounting points, and adjust the multi-shutter damper to the desired airflow setting after system startup. Follow applicable local mechanical codes and manufacturer guidelines for supply register installation.

Technical Specifications

• Face Dimension: 10 x 8 inches
• Material: Stamped Steel
• Finish: White Powder Coat
• Damper Type: Multi-Shutter
• Application: Ceiling and Sidewall Supply

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: 102M10X8
