Rectorseal 102m10x06 2-way Wall Ceiling Register 10x6 in

Product Description

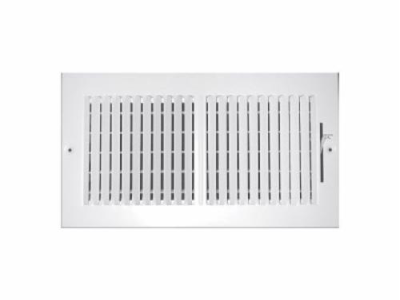

The RECTORSEAL 102m10x06 is a 2-way stamped steel supply register designed for wall or ceiling installation in residential and light commercial forced-air HVAC systems. It delivers a rated airflow range of 55 to 185 CFM with a 45-degree deflection angle and 1/2-inch blade spacing for controlled air distribution. The register features a powder coat finish applied to every component before assembly, producing a consistent white finish and reducing sharp edges. Overall depth is 1-7/16 inches, making it compatible with standard wall and ceiling cavities. HVAC technicians and installers specify this register for supply duct terminations in conditioned spaces.

The 102m10x06 is sized at 10 x 6 inches and fits standard 10 x 6 duct openings in wall or ceiling applications. It is suited for residential new construction, renovation work, and replacement of worn or damaged supply registers in forced-air systems. The countersunk screw holes allow for a flush, clean mount against drywall or plaster surfaces. With 38 square inches of face area and a CFM range of 55 to 185, it is well matched to standard residential supply runs serving individual rooms or zones.

Key Features

• 2-way airflow deflection at 45 degrees for directional supply air control
• Airflow range of 55 to 185 CFM suitable for residential supply runs
• Powder coat finish applied pre-assembly for uniform coverage and durability
• Countersunk screw holes provide a flush, clean installation against wall or ceiling surfaces
• 1/2-inch blade spacing and 38 square inches of face area for consistent air pattern
• Stamped steel construction for rigidity and cost-effective replacement

Compatibility

Designed as an OEM-style replacement or new-installation supply register for standard 10 x 6 inch duct openings in residential and light commercial forced-air HVAC systems with wall or ceiling supply configurations.

Installation Notes

Installation is typically performed by HVAC technicians or qualified installers during system commissioning or register replacement service. Power down the air handler or furnace before removing an existing register to avoid debris entering the duct system. Secure the register using the countersunk screw holes with appropriate fasteners for the wall or ceiling material. Verify the duct opening dimensions match the register face size before final installation.

Technical Specifications

• Register Size: 10 x 6 inches
• Airflow Range: 55 to 185 CFM
• Deflection Angle: 45 degrees
• Blade Spacing: 1/2 inch
• Overall Depth: 1-7/16 inches
• Face Area: 38 square inches
• Material: Steel
• Finish: Powder Coated White
• Airflow Direction: 2-Way
• Mount Location: Wall or Ceiling

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: 102m10x06
