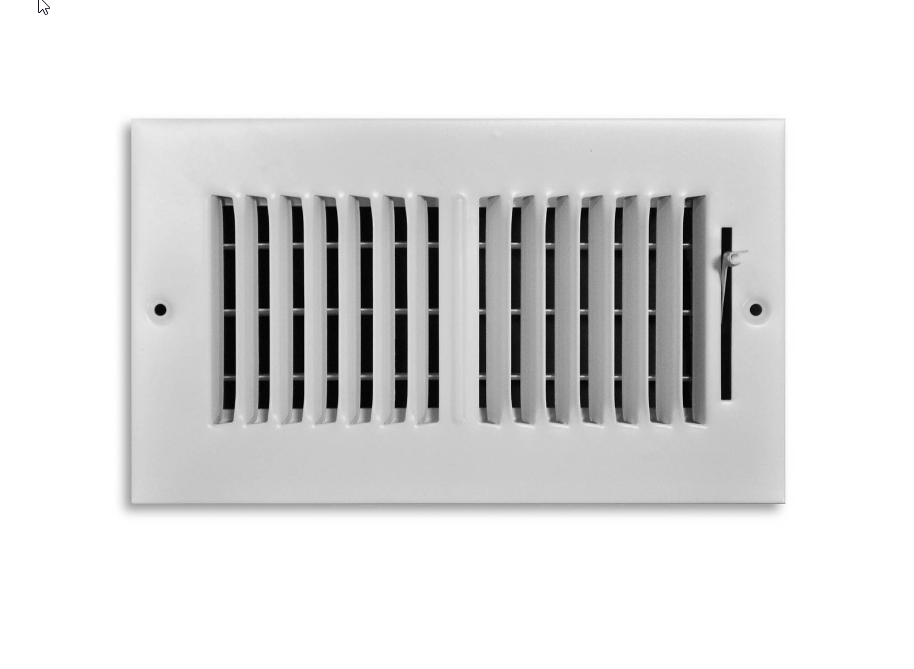

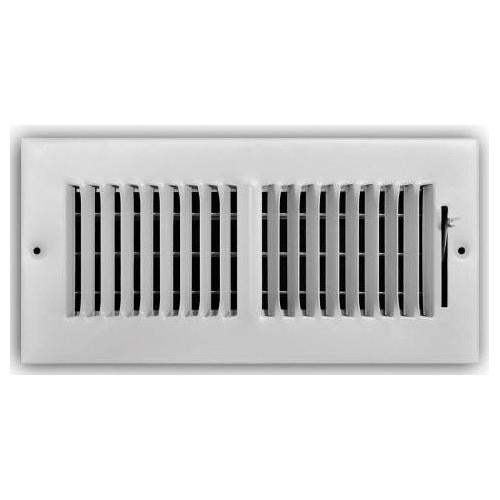

Rectorseal 102M10X04 2-Way Stamped Register (10 x 4 in)

Product Description

Rectorseal 102M10X04 is a 2-way stamped wall/ceiling register sized for 10 x 4 in duct openings. The register features 1/2 in blade spacing, a multi-shutter damper with finger-lever actuation, and an effective area of 24 sq-in with an air flow rating up to 115 CFM at 1000 FPM. Constructed of stamped metal with a powder-coated finish, it includes countersunk screw holes and an overall depth of 1.50 in.

• Two-way stamped register for sidewall or ceiling installation; nominal size 10 x 4 in with 1/2 in blade spacing
• Effective area 24 sq-in; air flow rating 115 CFM at 1000 FPM (flow range reported 35 to 115 CFM)
• Stamped metal construction with powder-coated finish, multi-shutter damper, countersunk screw holes; overall depth 1.50 in

Product Highlights

10 x 4 in 2-way stamped wall/ceiling register; 1/2 in blade spacing; 24 sq-in effective area; 115 CFM at 1000 FPM; stamped metal construction; 1.50 in depth

Product Information

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: 102M10X04
• Country of Origin: Vietnam

Technical Specifications

• Brand: RECTORSEAL
• Manufacturer: RectorSeal
• Manufacturer Part Number: 102M10X04
• Series/Model: 102M
• Type: 2-Way register (sidewall/ceiling)
• Size: 10 x 4 in (nominal duct opening)
• Material: Stamped metal
• Blade Spacing: 1/2 in
• Deflection Angle: 45 deg
• Effective Area: 24 sq-in
• Flow Rate: 35 to 115 CFM
• Air Flow Rating: 115 CFM at 1000 FPM
• Damper Type: Multi-shutter damper
• Actuation Type: Finger lever
• Finish: Powder-coated
• Overall Depth: 1.50 in
• Width (overall frame): 11.75 in
• Height (overall frame): 5.75 in
• Weight: 0.99 lb
• Mounting: Wall or ceiling
• UPC: 80349212120
• Country Of Origin: VN (Vietnam)
