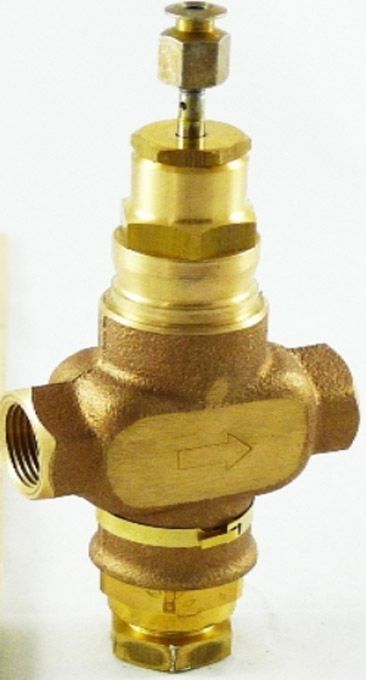

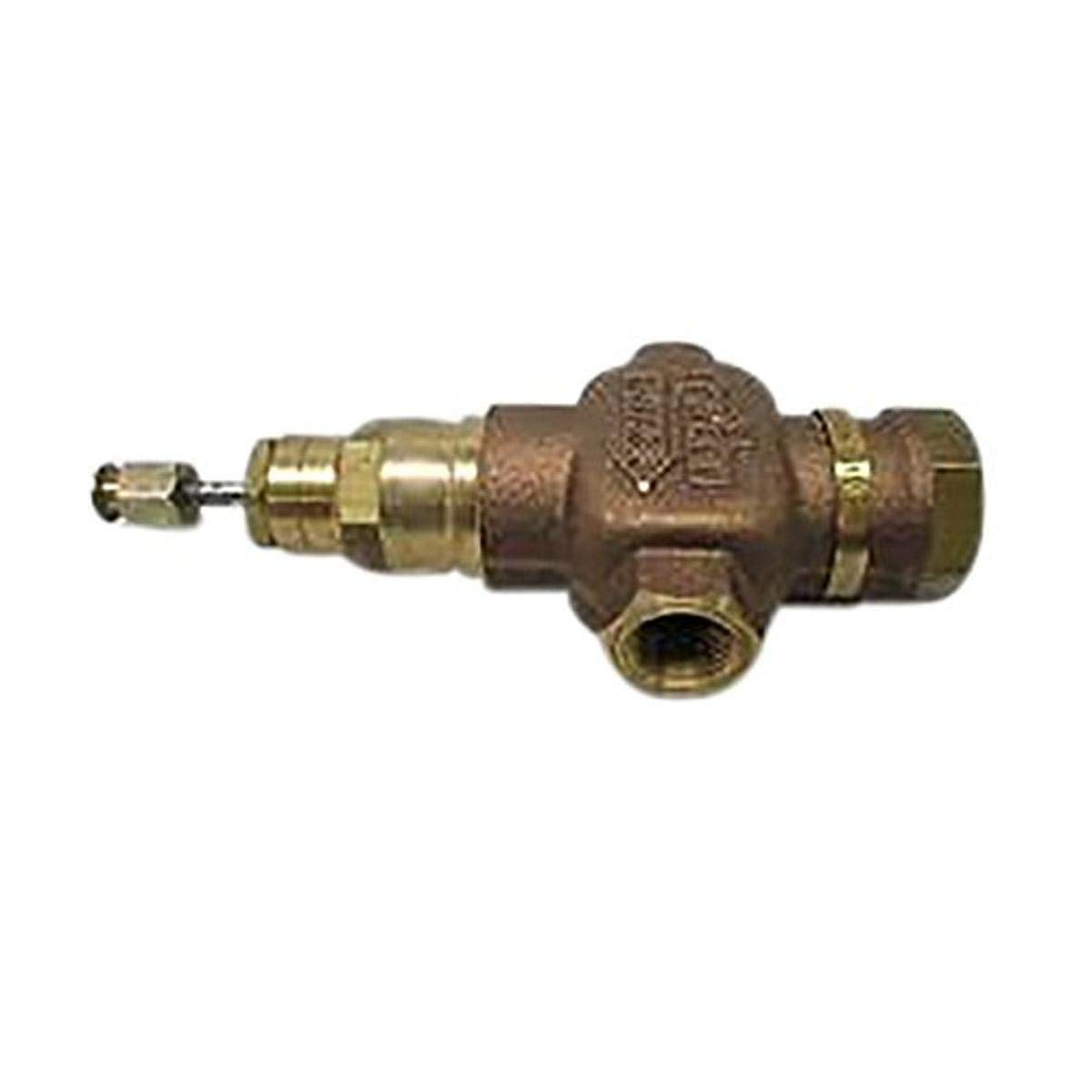

Honeywell V5011N2048 Two-Way Globe Valve 1/2 NPT 4.7 Cv

Product Description

The Honeywell V5011N2048 is a two-way globe valve designed for controlling steam, water, and glycol solutions in heating or cooling HVAC applications. The valve, part of Honeywell's extensive range, ensures precise and reliable operation.

• Versatile two-way valve
• 1/2 inch NPT connections
• Rugged construction with red brass body

Product Highlights

The V5011N2048 valve is adaptable for both two-position and modulating control systems. Ideal for steam, hot water, and glycol (up to 50% concentration), it features a low seat leakage rate and robust stainless steel stem and seats.

Product Information

Standard Information

• Brand: Honeywell
• Model: V5011N
• MPN: V5011N2048

Technical Specifications

• Valve Size: 1/2 inch
• Connection Type: NPT
• Valve Application: Steam, Water
• Body Material: Red Brass
• Stem Material: Stainless Steel
• Max Pressure: 150 psi
• Flow Capacity (Cv): 4.7
• Weight: 2.64 lbs
• Length: 9.15 inches
• Width: 4 inches
• Height: 2.5 inches
