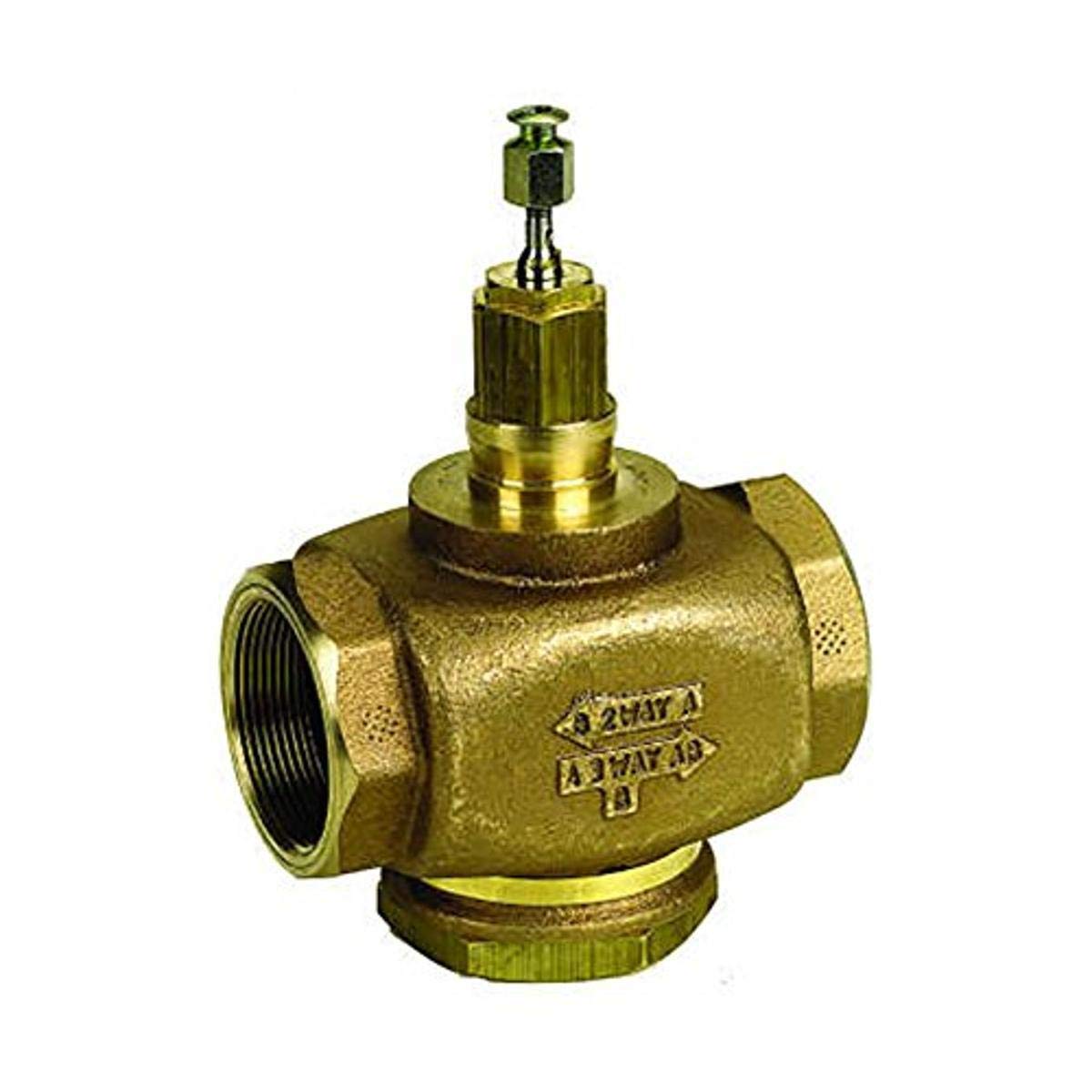

Honeywell V5011N2006 Globe Valve Two-Way NPT 0.73 Cv Water Glycol Steam Replacement V5011N2006

Product Description

The Honeywell V5011N2006 two-way globe valve is a robust solution designed for regulated flow of steam, water, and glycol mixtures. Ideal for heating or cooling applications within HVAC systems, this valve ensures precision and durability.

• Direct and reverse functionality for diverse applications.
• Equipped with stainless steel stem and components for corrosion resistance.
• Self-adjusting packing to minimize leakage.

Product Highlights

Featuring superior design with metal-to-metal seating and a red brass body, the V5011N2006 valve operates under high-pressure steam environments. Its linear flow characteristic ensures precise control.

Product Information

Standard Information

• Controlled Medium: Steam, water, up to 50% glycol solution.
• Size: 1/2 inch Female NPT.

Technical Specifications

• Body Material: Red Brass.
• Maximum Differential Pressure: 240 psi.
• ANSI/ASME Rating: 150.
• Temperature Ratings: up to 340 degrees Fahrenheit for steam.
• Flow Coefficient (Cv): 0.73.
• Leakage: Less than 0.05% of Cv
