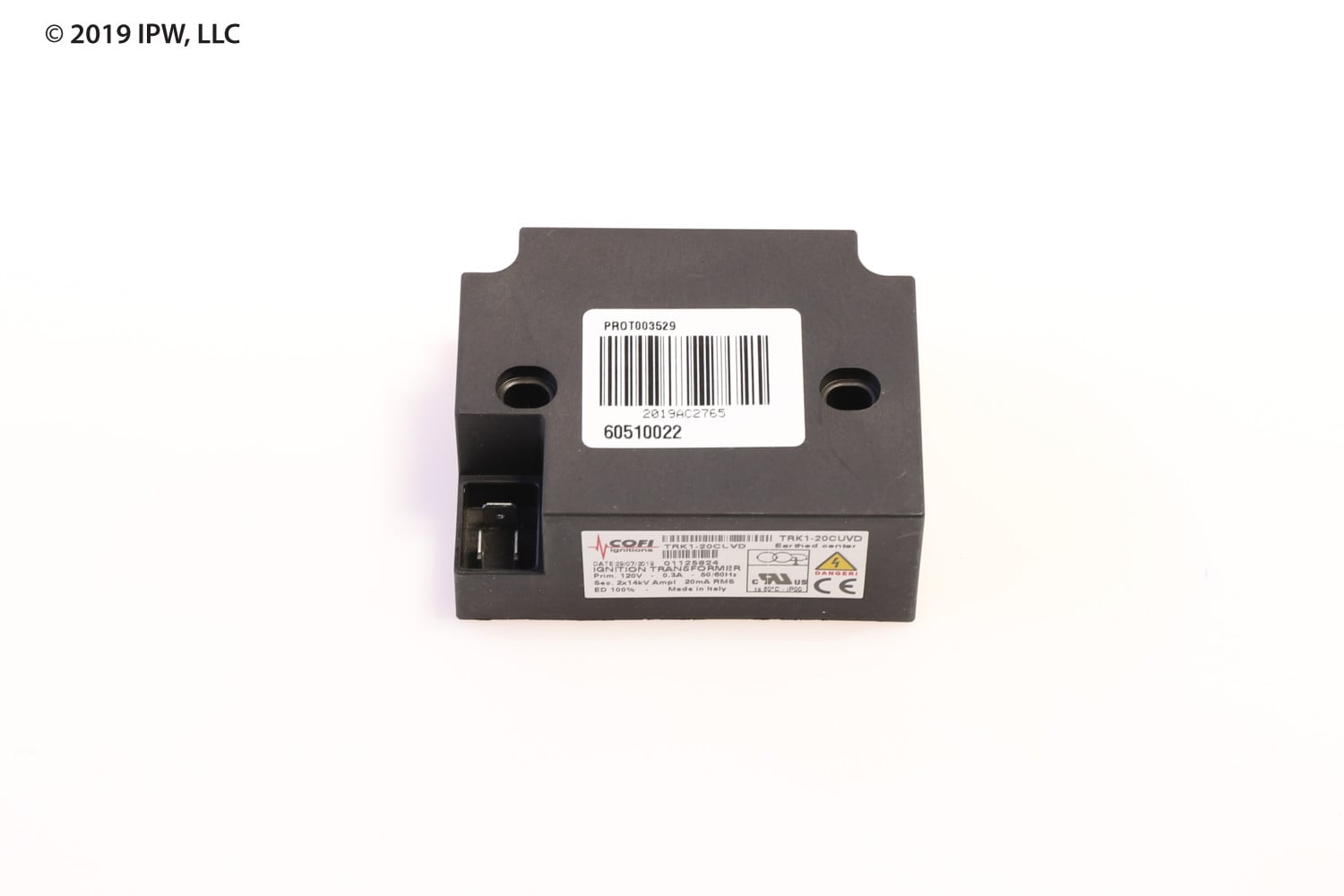

Rbi RBI-60510022 Ignition Transformer 120V 14kv

Product Description

The RBI RBI-60510022 is an ignition transformer designed for use in RBI boiler systems. It operates on a 120-volt primary input and delivers a dual 14-kilovolt secondary output to generate the high-voltage spark required for burner ignition. This transformer steps up line voltage to the arc-producing level needed to light the burner at startup. Installation is typically performed by a licensed HVAC technician or combustion equipment specialist during boiler service or ignition system replacement.

This ignition transformer is intended for use in RBI-branded commercial and residential hot water boiler equipment. It fits into the ignition circuit between the control board and the igniter electrodes, providing reliable high-voltage spark energy during each call for heat. Technicians replacing a failed ignition transformer should verify the primary voltage supply and secondary output rating match the original component specifications before installation.

Key Features

• 120-volt primary input matches standard line voltage supply
• Dual 14-kilovolt secondary output delivers high-voltage spark energy for burner ignition
• Direct OEM replacement part for RBI boiler ignition systems
• Designed for use in boiler combustion control circuits

Compatibility

Designed as an OEM-style replacement ignition transformer for RBI boiler systems requiring a 120-volt primary, dual 14kV secondary ignition transformer.

Installation Notes

Installation should be performed by a qualified technician familiar with commercial or residential boiler ignition systems. Always shut off electrical power to the boiler and allow the system to de-energize fully before disconnecting the ignition transformer. Verify that primary supply voltage matches the transformer rating before energizing. Applicable work should conform to local electrical codes and NFPA 54 or relevant national fuel gas codes.

Technical Specifications

• Primary Voltage: 120 volts
• Secondary Voltage: 2 x 14kV

Standard Information

• Brand: RBI
• Manufacturer Part Number: RBI-60510022
