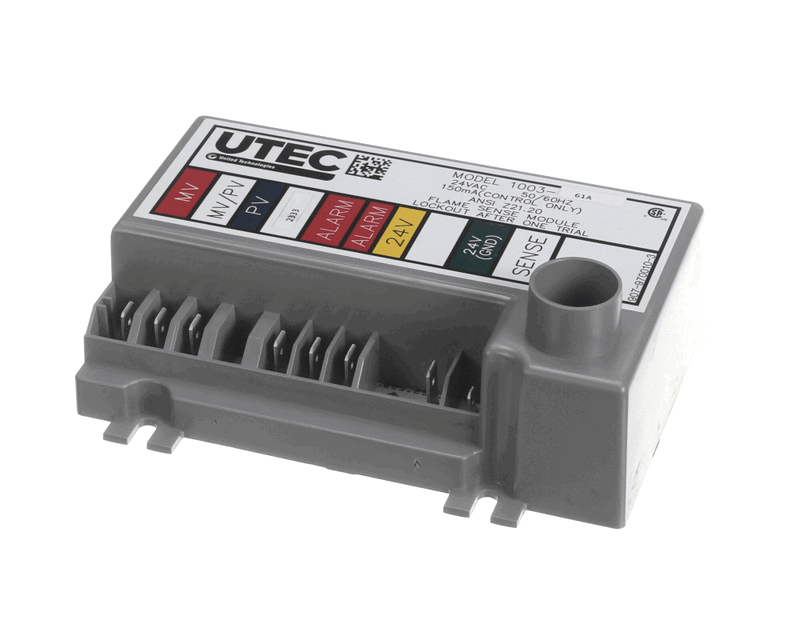

Rbi Rbi-16-0059 ignition module flame sense 24 VAC (Each) Rbi1003-61A

Product Description

RBI RBI-16-0059 is an ignition module with integrated flame sensor for 24 VAC systems that detects flame presence and controls ignition sequences. The module operates at 50/60 Hz, draws approximately 150 mA, and includes a lockout after one try. It is compatible with UTC 1003 ignition systems and a range of RBI/Lite heater and boiler models and is used on gas boilers and water heaters.

• Integrated flame sensing and ignition control for detection of flame presence and sequencing
• Electrical: 24 VAC, 50/60 Hz operation with approximately 150 mA operating current and single-try lockout
• Compatible with UTC 1003 ignition systems; suitable for use on boilers and water heaters including LCD Series finned copper units

Product Highlights

Ignition module with integrated flame sensor; 24 VAC, 50/60 Hz; ~150 mA draw; lockout after one try; UTC 1003 compatibility.

Product Information

Standard Information

• Brand: RBI
• Manufacturer Part Number: RBI-16-0059

Technical Specifications

• Manufacturer: RBI
• Manufacturer Part Number: RBI-16-0059
• Description: Ignition module with flame sensor
• Input Voltage: 24 VAC
• Frequency: 50/60 Hz
• Operating Current: 150 mA
• Lockout: Lockout after one try
• Units: Each
• Package Quantity: 1
• Previous Part Number: RBI1003-61A
• Parts Town Number: RBI16-0059
• TSCO Part Number: 103412
• Dimensions: 5.4 in x 3.9 in x 2.1 in (13.72 cm x 9.91 cm x 5.33 cm)
• Suitable For Use With: LCD Series finned copper gas boilers and water heaters
• Fits Models: DB1050, DB1350, DB1500, DB1950, DB2100, DB300, DB400, DB600, DB750, DB900, DW1050, DW1350, DW1500, DW1950, DW2100, DW300, DW400, DW600, DW750, DW900, LB1050, LB1200, LB1480, LB1650, LB1970, LB225, LB2300, LB300, LB400, LB600, LB750, LW1050, LW1200, LW1480, LW1650, LW1970, LW225, LW2300, LW300, LW400, LW600, LW750
