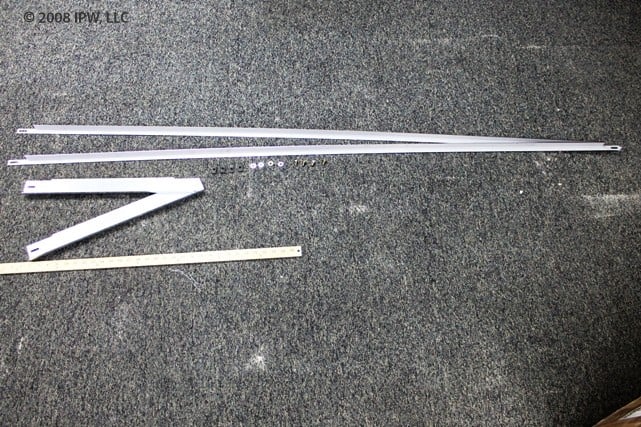

Raypak RAY-001518F Refractory Retainer Kit

Product Description

The RAYPAK RAY-001518F is a refractory retainer kit designed to secure refractory material inside a pool or spa heater combustion chamber. Refractory components line the firebox and protect the heat exchanger and surrounding metal from direct flame exposure. This kit provides the hardware necessary to hold that lining in place during operation. Pool and spa service technicians install this part during combustion chamber rebuilds or when inspecting for firebox deterioration.

This kit is used in pool and spa heater applications where refractory material has loosened, cracked, or been removed for service. It is a common component in scheduled maintenance and heater restoration work. Technicians performing combustion chamber inspections will typically evaluate retainer condition as part of a full firebox assessment.

Key Features

• Retains refractory lining within the combustion chamber during heater operation
• Supports firebox integrity by preventing refractory displacement
• Designed for use in pool and spa heater combustion chamber service
• Packaged as a complete kit for streamlined installation

Compatibility

Designed as an OEM-style replacement refractory retainer kit for RAYPAK pool and spa heaters. Verify fitment against the specific heater model number before installation.

Installation Notes

A qualified pool and spa technician or HVAC service professional should perform this installation. Shut off the gas supply and disconnect electrical power to the heater before opening the combustion chamber. Allow all refractory and metal components to cool fully before handling. Follow the heater manufacturer's service documentation and applicable local codes when rebuilding the firebox.

Technical Specifications

• Component Type: Refractory Retainer Kit

Standard Information

• Brand: RAYPAK
• Manufacturer Part Number: RAY-001518F
