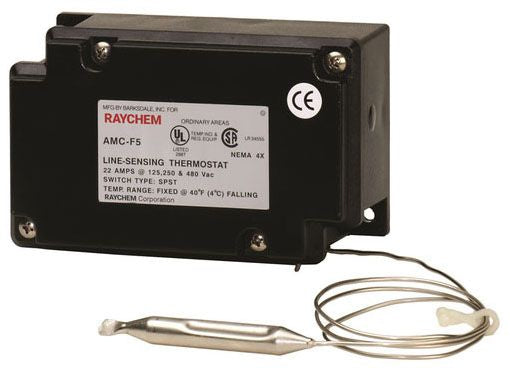

Raypak AMC-F5 Fixed Point Thermostat Pool Heater

Product Description

The RAYPAK AMC-F5 is a fixed point thermostat designed for use in pool and spa heating systems. Fixed point thermostats differ from adjustable models by maintaining a factory-set temperature threshold, providing consistent and repeatable control without field adjustment. The AMC-F5 serves as a switching device within the heater control circuit, opening or closing contacts at a predetermined temperature setpoint to protect equipment or regulate heat output. Licensed pool and HVAC technicians typically install this component during heater servicing or control system repair.

The AMC-F5 is suited for residential and light commercial pool and spa heating applications where a fixed-setpoint temperature control is required. It fits within the control circuit of RAYPAK pool heaters as an OEM-style replacement component. Installers working on RAYPAK heating equipment will encounter this part during thermostat replacement or control circuit troubleshooting procedures.

Key Features

• Fixed setpoint design eliminates field adjustment, ensuring consistent switching behavior
• OEM replacement part sourced directly from RAYPAK for reliable fit and function
• Serves as a switching control in pool and spa heater temperature circuits
• Compact form factor suited for integration within existing RAYPAK heater control assemblies

Compatibility

Designed as an OEM-style replacement fixed point thermostat for RAYPAK pool and spa heating equipment. No additional specific model compatibility data was provided with this listing.

Installation Notes

Installation should be performed by a qualified pool heating technician or licensed HVAC professional. Shut off all power to the heater and allow the unit to cool completely before removing or replacing any thermostat component. Follow applicable local codes and the heater manufacturer service documentation when reconnecting control circuit wiring. Do not restore power until all connections are secured and access panels are in place.

Technical Specifications

• UPC: 71562900551

Standard Information

• Brand: RAYPAK
• Manufacturer Part Number: AMC-F5
