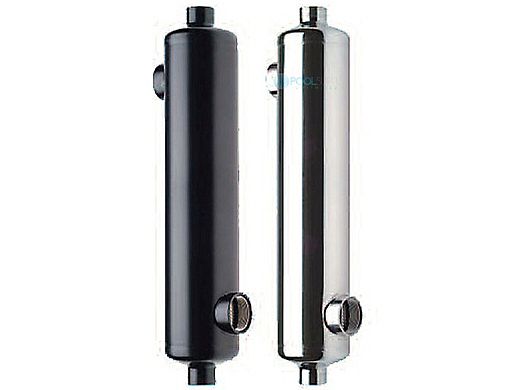

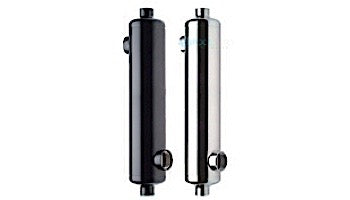

Raypak 013480 RP-245 Indirect Heat Exchanger 245,000 BTUH

Product Description

The Raypak RP-245 Indirect Heat Exchanger, MPN 013480, is designed for reliable heat transfer in swimming pools and hot tubs. This unit is made with special treated stainless steel 316L, which provides durability and resistance to corrosive water environments. It is suitable for high water flows and maintains low temperature variances.

• Effective for high flow pools and low temp variations.
• Suitable for heating large facilities including Olympic swimming pools.
• Compact design allows for easy installation.

Product Highlights

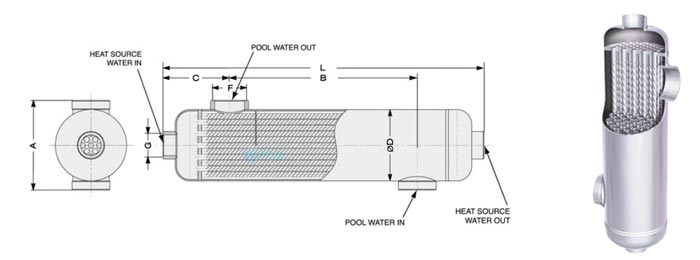

This indirect heat exchanger effectively transfers heat using a hydronic boiler while maintaining water quality and chemistry, making it ideal for use in saltwater pools.

Product Information

Standard Information

• Brand: Raypak
• MPN: 013480

Technical Specifications

• Nominal Capacity: 245,000 BTUH
• Material: SS316L
• Pressure Tube Side: 235 PSI
• Pressure Shell Side: 190 PSI
• Temperature Tube Side: 406 °F
• Temperature Shell Side: 406 °F
• Dimensions: Length - N/A, Diameter - N/A
• Heat Transfer Area: 6.80 sq.ft
