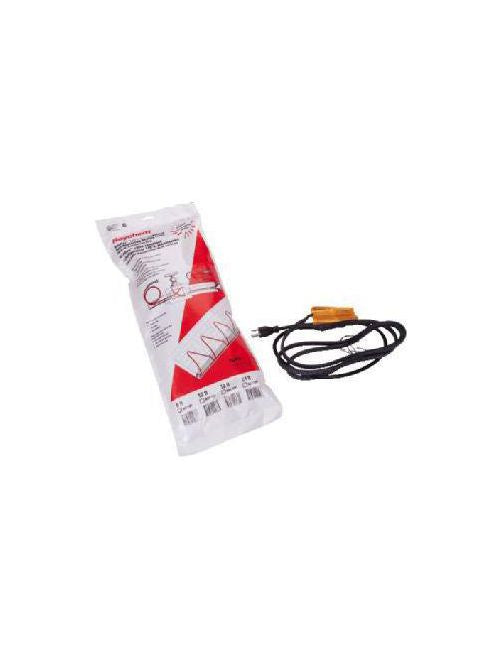

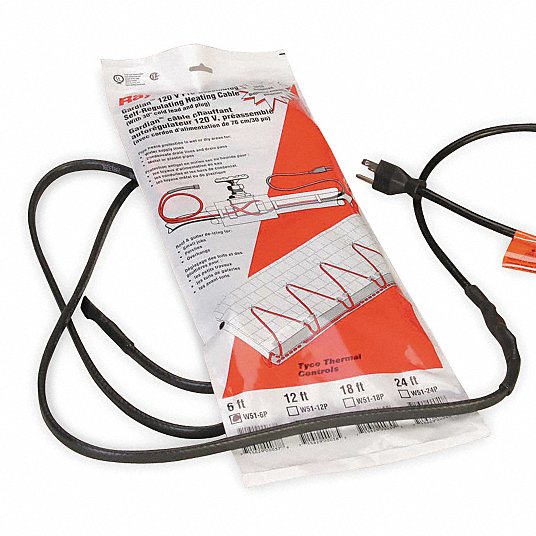

Raychem W51-6P 6 Foot 120 Volt 5 W Heating Cable

Product Description

The Raychem W51-6P Gardian Heat Cable is a self-regulating heat cable ideal for commercial and residential use. It provides freeze protection for metal and plastic insulated pipes, roof and gutter de-icing, and crankcase heating applications. Suitable for pipes up to 2-1/2 inches in diameter, this 6-foot cable operates at 120 volts.

• Self-regulating
• Preassembled
• Freeze protection for metal and plastic insulated pipes

Product Highlights

This Raychem heat cable is perfect for pipe freeze protection, roof and gutter de-icing, and crankcase heating applications.

Product Information

Standard Information

• Brand: RAYCHEM
• Manufacturer Part Number: W51-6P
• Country of Origin: USA

Technical Specifications

• Type: Self Regulating, Preassembled
• Brand: Raychem
• Length: 6 Foot
• Voltage: 120 Volt
• Wattage: 6 Watt
• Sub Brand: Gardian
• Product UPC: 71562900037
• 12-Digit UPC: 715629000378
• Applications: For Plastic or Metal Pipe Up to 2-1/2 in dia Short Pipes, Water Pipe System
• Conductor Size: 16 AWG
• Temperature Rating: 150 degrees F
• Heating Cable Technology: Self-Regulating
• Ground Path Type: Braid
• Min Installation Temperature: 5 °F
• Nominal Width: 0.45 in
• Nominal Height: 0.24 in
• Max Continuous Exposure Temperature, Power On: 150 °F
• Cold Lead Length: 6 ft
• Conductor Material: Copper/Nickel
• Jacket Material: Polyolefin
