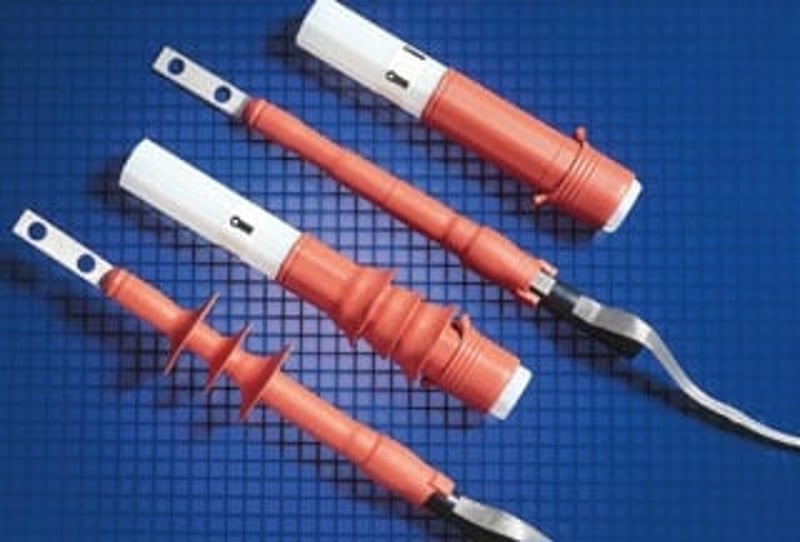

Raychem TFT-152R-G Power Cable Termination 14.73 – 20.57 mm [0.58 – 0.81] OD

Product Description

The Raychem TFT-152R-G is a reliable indoor cold shrink power cable termination designed for cables ranging from four aught to 500 MCM. It is suitable for cable insulation outer diameters between 0.85 and 1.45 inches. This includes a cold applied technology that ensures a secure connection without the need for additional heat sources.

• Voltage class of 15 kV or lower
• Single core design
• Compatible with a range of cables in commercial applications

Product Highlights

Engineered for secure, long-lasting connections, the TFT-152R-G is ideal for various electrical applications, especially where reliable terminations are required.

Product Information

Standard Information

• Brand: Raychem
• Part Number: TFT-152R-G

Technical Specifications

• Cable Shield Style: Tape
• Number of Cores: 1
• Power Cable Termination Technology: Cold Applied, Cold Shrink
• Termination Voltage Class: ≤ 15 kV
• Compatibility: Cross-Section Range (AWG/kcmil): 250 – 500
• Length Installed: 266.7 mm [10.5 in]
• Conductor Diameter: 14.73 – 20.57 mm [0.58 – 0.81 in]
• Insulation Diameter: 21.59 – 36.83 mm [0.85 – 1.45 in]
