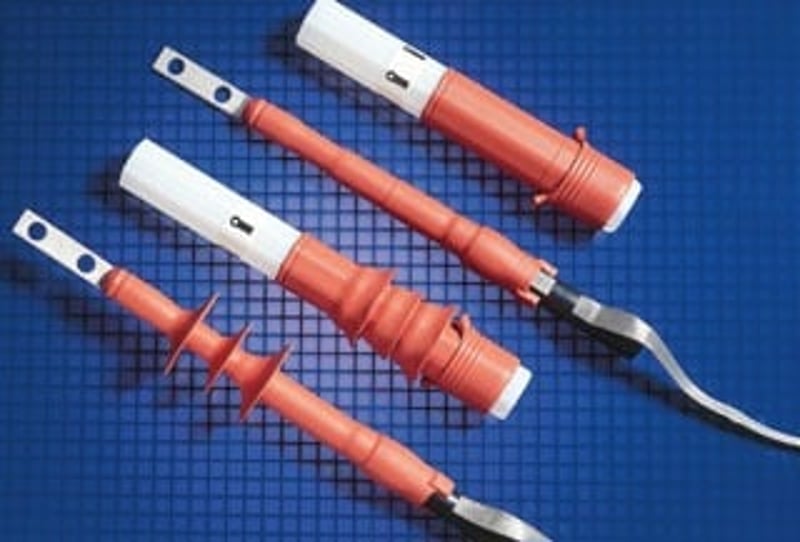

Raychem TFT-151R-G Power Cable Termination 16.25 – 27.68 mm [ .64 – 1.09 ] OD

Product Description

The Raychem TFT-151R-G is a power cable termination designed for indoor applications. It is suitable for cables ranging from two to 250 MCM with an insulation outer diameter of .64 to 1.09 inches. This product utilizes cold applied technology, ensuring reliable performance under various conditions.

• Rated for a voltage class of fifteen kV.
• Features cold shrink termination technology.
• Compatible with a variety of wire sizes and insulation types.

Product Highlights

The Raychem TFT-151R-G provides easy installation and effective insulation for power cable applications in indoor environments.

Product Information

Standard Information

• Application: Indoor
• Manufacturer: Raychem

Technical Specifications

• Conductor Cross-Section Range: 2 – 250 AWG/kcmil
• Length (Installed): 266.7 mm [10.5 inches]
• Termination Conductor Diameter: 7.36 – 14.73 mm [.29 – .58 inches]
• Termination Insulation Diameter: 16.25 – 27.68 mm [.64 – 1.09 inches]
• Power Cable Termination Technology: Cold Applied, Cold Shrink
• Cable Shield Style: Tape
• Number of Cores: 1
• Voltage Class: ≤ 15 kV
