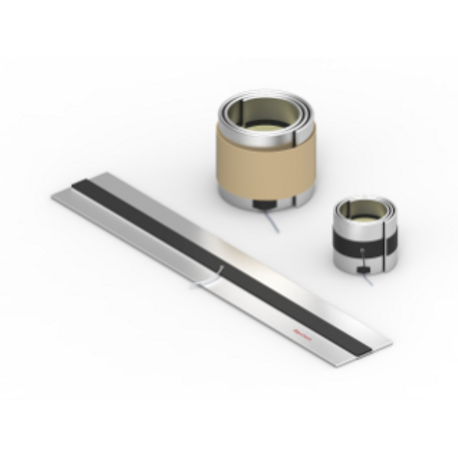

Raychem RDSS-CLIP-100 Duct Sealing System

Product Description

The Raychem RDSS-CLIP-100 is a duct sealing system designed to effectively seal multiple cables within ducting systems. This innovative product uses a flexible aluminum-polyethylene laminate to create an inflatable bladder that conforms around cables, providing an airtight seal. It is suitable for use with concrete, plastic, and steel ducting materials. The RDSS-CLIP-100 offers a versatile solution for securing up to four cables with a single clip or up to seven cables with two clips.

• Material: Inflatable bladder of flexible aluminum-polyethylene laminate.
• Seals up to four cables with one clip; up to seven with two clips.
• Compatible with various ducting materials including concrete, plastic, and steel.

Product Highlights

This system is ideal for HVAC, plumbing, or electrical installations that require multiple cables to run through ducting without leakage. The user-friendly design allows for a quick and efficient installation process.

Product Information

Standard Information

• Brand: Raychem
• Part Number: RDSS-CLIP-100

Technical Specifications

• Commoditiy Code: 6660
• Application: Ducting Systems - Concrete, Plastic, Steel
• Compatibility: Admissible Cable Diameter at Duct Inside Diameter (mm): 0-45 at 75.0, 0-52 at 80.0, 0-60 at 85.0, 0-66 at 90.0, 0-74 at 95.0, 0-80 at 100.0, 0-85 at 105.0, 0-90 at 110.0, 55-95 at 115.0, 60-100 at 120.0
• Environmental Conditions: Dry/Wet
