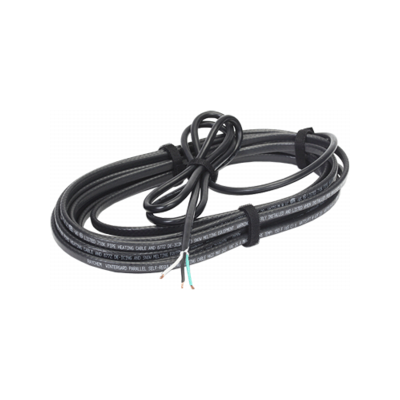

RAYCHEM P000002030 FrostGuard Self-Regulating Heating Cable

Product Description

The RAYCHEM P000002030 FrostGuard is a self-regulating heating cable meant for protecting pipes against freezing. It operates at two hundred forty volts and measures twelve feet in length. The product includes a six-foot power cord for connection to a junction box.

• Self-regulating design ensures efficient freeze protection.
• Pre-assembled feature allows for easy setup.
• Compatible with pipes having a diameter of up to two and a half inches.

Product Highlights

This heating cable is designed for both metal and plastic pipes. Its self-regulating feature prevents overheating, allowing it to be overlapped without issues.

Product Information

Standard Information

• Brand: RAYCHEM
• Manufacturer Part Number: P000002030

Technical Specifications

• Voltage: 208 - 240 V
• Length: 12 ft
• Wattage: 72 W
• Watt/Foot: 6 Watt/Ft
• Cold Lead Length: 6 ft
• Max Continuous Exposure Temperature, Power On: 150 °F
• Min Installation Temperature: -15 °C
• Conductor Material: Nickel Plated Copper
• Insulation Material: Modified Polyolefin
• Jacket Material: Modified polyolefin
• Number Of Conductors: 2
• Application: Pipe Freeze Protection
• Item Weight: 1.90 lbs per EA
