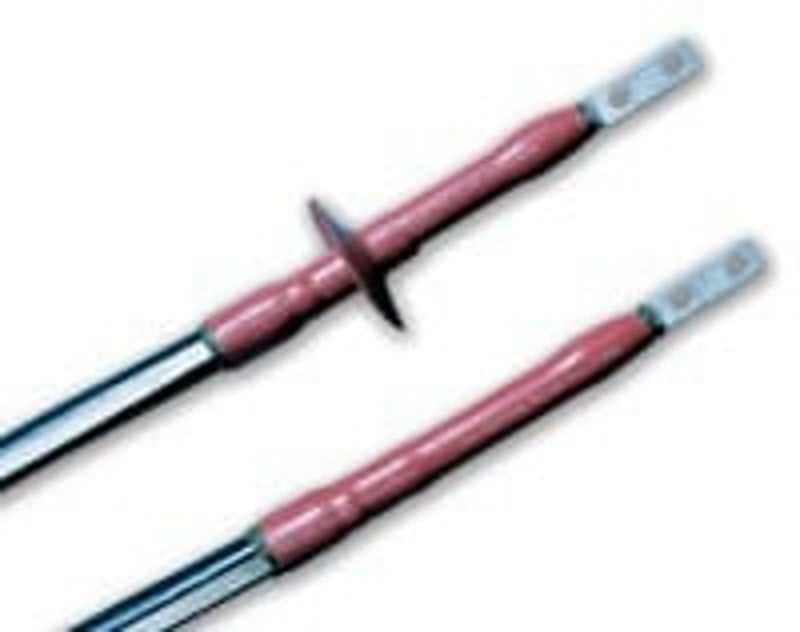

Raychem HVT-Z-82-G/SG Medium Voltage Termination 20.32 – 31.75 mm [0.8 – 1.25] OD

Product Description

The Raychem HVT-Z-82-G/SG is a medium voltage termination solution designed for cables in the range of twenty point thirty-two to thirty-one point seventy-five millimeters. This product supports cable sizes of three hundred kcmil to five hundred kcmil. It is suitable for both indoor and outdoor applications and delivers reliable performance up to five kV.

• Compatible with insulation diameters from zero point eight inches to one point twenty-five inches
• Easy installation with heat shrink technology
• Meets industry standards for cable management and termination

Product Highlights

This termination is engineered for robust performance in a variety of environments, providing effective sealing and strain relief for medium voltage systems.

Product Information

Standard Information

• Brand: Raychem
• MPN: HVT-Z-82-G/SG

Technical Specifications

• Insulation Class: Indoor/Outdoor
• Power Cable Termination Voltage Class (kV): ≤ 8
• Installed Length: two hundred ninety-two point one millimeters
• Conductor Diameter: fourteen point six to twenty point sixty-five millimeters
• Sheath Outside Diameter: thirty-eight point one millimeters
• Cable Compatibility: 250 – 500 AWG
• Application: Heat Shrink
