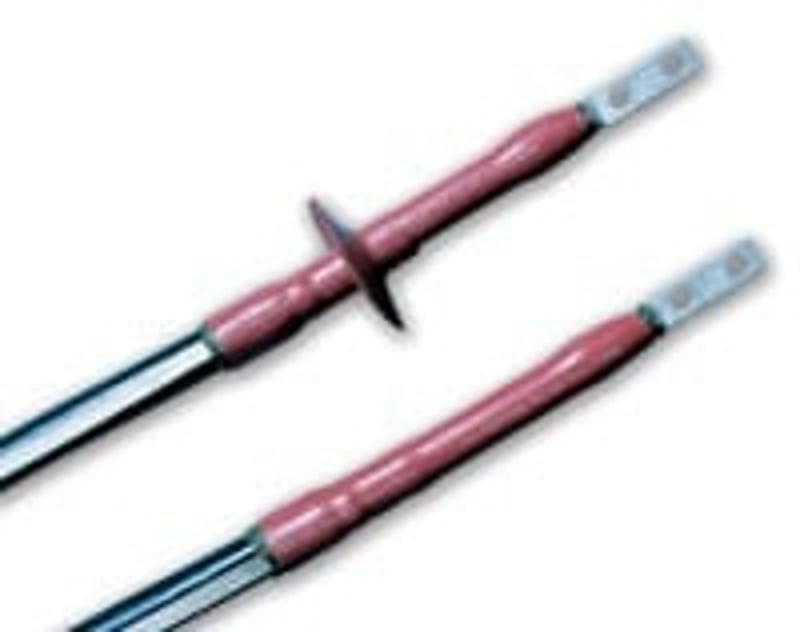

Raychem HVT-Z-252/352-SG Medium Voltage Termination 20.32 – 31.75 mm [0.8 – 1.25] OD

Product Description

The Raychem HVT-Z-252/352-SG is a medium voltage termination designed for cables with an insulation diameter ranging from twenty point thirty-two millimeters to thirty-one point seventy-five millimeters, equivalent to zero point eight to one point twenty-five inches. This termination is suitable for use with power cable applications where high performance and reliability are required.

• Rated for up to thirty-five kilovolt (kV)
• Compatible with cable sizes from number two through two hundred fifty MCM
• Utilizes heat shrink technology for secure insulation

Product Highlights

The HVT-Z-252/352-SG is ideal for outdoor environments and is tailored for demanding electrical applications. It provides a robust solution for ensuring effective cable terminations and safeguarding against environmental factors.

Product Information

Standard Information

• Brand: Raychem
• MPN: HVT-Z-252/352-SG

Technical Specifications

• Application: Outdoor
• Insulation Diameter: 20.32 – 31.75 mm [0.8 – 1.25 in]
• Installation Length: 482.6 mm [19 in]
• Conductor Diameter: 8.43 – 9.47 mm [0.332 – 0.373 in]
• Cross-Section Range: 1 – 1/0 AWG/kcmil
• Power Cable Termination Voltage Class: ≤ 35 kV
• Shed Inside Diameter: 94.99 mm [3.74 in]
• Sheath Outside Diameter: 38.1 mm [1.5 in]
