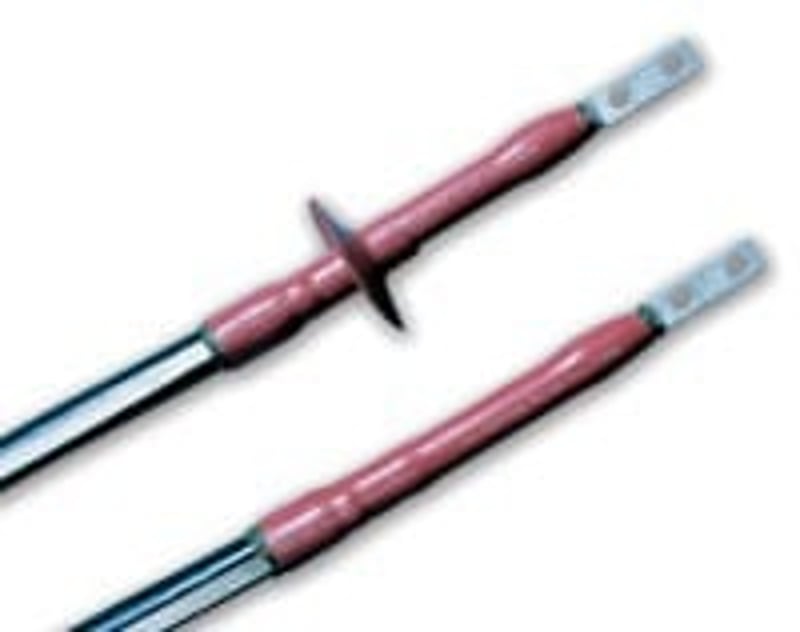

Raychem HVT-Z-153-G 15KV Medium Voltage Termination 27.94 – 44.45 mm [1.1 – 1.75] OD

Product Description

The Raychem HVT-Z-153-G is a medium voltage termination rated for up to fifteen kilovolts. This product accommodates cable insulation diameters ranging from twenty-seven point ninety-four to forty-four point forty-five millimeters, which is equivalent to one point one to one point seventy-five inches. Suitable for applications involving cable sizes between four hundred and one thousand circular mils, it is designed for easy installation and reliable performance.

• Power cable termination technology: Heat shrink
• Ideal for both indoor and outdoor environments
• Single core design

Product Highlights

The HVT-Z-153-G termination provides robust protection and insulation for electrical connections. It ensures safety in high voltage applications.

Product Information

Standard Information

• Brand: Raychem
• MPN: HVT-Z-153-G

Technical Specifications

• Insulation Material: Plastic
• Power Cable Termination Voltage Class: Up to 15 kV
• Compatibility: Cross-section range 400 – 1000 kcmil
• Insulation Diameter Range: 27.94 – 44.45 mm [1.1 – 1.75 in]
• Sheath Outside Diameter: 53.34 mm [2.1 in]
• Installed Length: 292.1 mm [11.5 in]
• Conductor Diameter Range: 18.54 – 29.26 mm [0.73 – 1.152 in]
